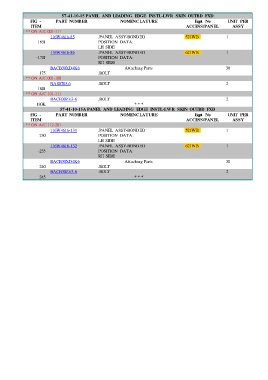

Page 55 - DOOR 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-111
116W4616-85 .PANEL ASSY-BONDED 521WB 1
165J POSITION DATA:
LH SIDE
116W4616-86 .PANEL ASSY-BONDED 621WB 1
-170J POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
175 .BOLT
** ON A/C 001-100
NAS8703-6 .BOLT 2
180J
** ON A/C 101-111
BACB30ZE3-6 .BOLT 2
180K * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4616-131 .PANEL ASSY-BONDED 521WB 1
230 POSITION DATA:
LH SIDE
116W4616-132 .PANEL ASSY-BONDED 621WB 1
-235 POSITION DATA:
RH SIDE
BACB30XD4K6 Attaching Parts 30
240 .BOLT
BACB30ZE3-6 .BOLT 2
245 * * *
