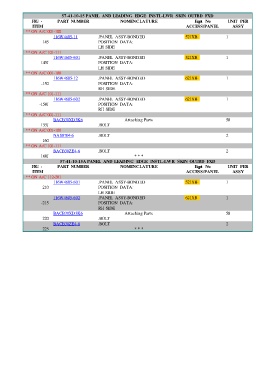

Page 58 - DOOR 521

57-41-10-15 PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 001-100
116W4605-11 .PANEL ASSY-BONDED 521XB 1
145 POSITION DATA:
LH SIDE
** ON A/C 101-111
116W4605-601 .PANEL ASSY-BONDED 521XB 1
145J POSITION DATA:
LH SIDE
** ON A/C 001-100
116W4605-12 .PANEL ASSY-BONDED 621XB 1
-150 POSITION DATA:
RH SIDE
** ON A/C 101-111
116W4605-602 .PANEL ASSY-BONDED 621XB 1
-150J POSITION DATA:
RH SIDE
** ON A/C 001-111
BACB30XD3K6 Attaching Parts 58
155J .BOLT
** ON A/C 001-100
NAS8704-6 .BOLT 2
160
** ON A/C 101-111
BACB30ZE4-6 .BOLT 2
160J * * *
57-41-10-15A PANEL AND LEADING EDGE INSTL-LWR SKIN OUTBD FXD
FIG - PART NUMBER NOMENCLATURE Eqpt No UNIT PER
ITEM ACCESS/PANEL ASSY
** ON A/C 112-201
116W4605-601 .PANEL ASSY-BONDED 521XB 1
210 POSITION DATA:
LH SIDE
116W4605-602 .PANEL ASSY-BONDED 621XB 1
-215 POSITION DATA:
RH SIDE
BACB30XD3K6 Attaching Parts 58
220 .BOLT
BACB30ZE4-6 .BOLT 2
225 * * *
