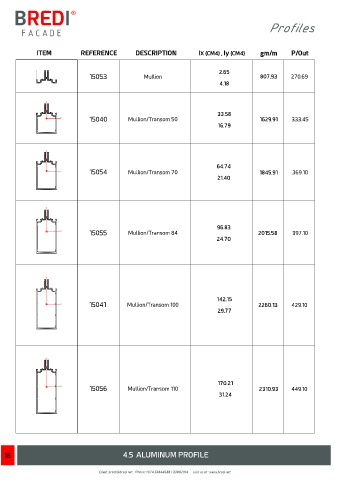

BREDI ®
FACADE Profiles
ITEM REFERENCE DESCRIPTION IX (CM4) , Iy (CM4) gm/m P/Out
2.65
15053 Mullion 807.93 270.69
4.18
y
33.58
15040 Mullion/Transom 50 1629.91 333.45
x
16.79
y y
64.74
15054 Mullion/Transom 70 1845.91 369.10
x x
21.40
y y y
96.83
x x x x x x
15055 Mullion/Transom 84 2015.58 397.10
24.70
y
142.15
15041 Mullion/Transom 100 2260.13 429.10
x x
29.77
y y
170.21
x x
15056 Mullion/Transom 110 2310.93 449.10
31.24
16 4.5 ALUMINUM PROFILE
