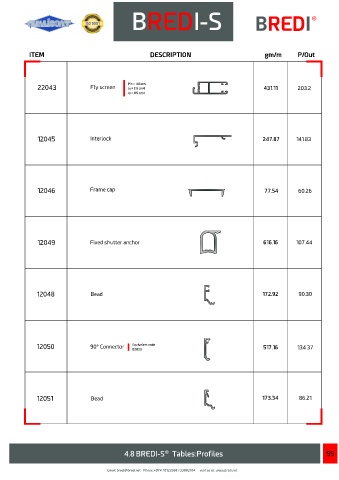

Page 57 - BREDI-S
P. 57
BREDI-S BREDI ®
ITEM DESCRIPTION gm/m P/Out
Pin = 48 mm
22043 Fly screen Jx = 2.6 cm4 431.11 203.2
Jy = 0.5 cm4
12045 Interlock 247.87 141.83
12046 Frame cap 77.54 60.26
12049 Fixed shutter anchor 616.16 107.44
12048 Bead 172.92 90.30
12050 90° Connector Equivalent code 517.16 134.37
02023
12051 Bead 173.34 86.21
4.8 BREDI-S® Tables:Profiles 55
