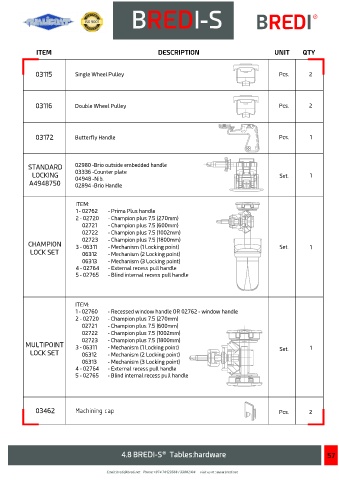

Page 59 - BREDI-S

BREDI-S BREDI ®

ITEM DESCRIPTION UNIT QTY

03115 Single Wheel Pulley Pcs. 2

03116 Double Wheel Pulley Pcs. 2

03172 Butterfly Handle Pcs. 1

STANDARD 02980 -Brio outside embedded handle
03336 -Counter plate
LOCKING Set. 1
04948 -Nib.
A4948750 02894 -Brio Handle

ITEM:
1 - 02762 - Prima Plus handle
2 - 02720 - Champion plus 7.5 (270mm)
02721 - Champion plus 7.5 (600mm)
02722 - Champion plus 7.5 (1002mm)
02723 - Champion plus 7.5 (1800mm)
CHAMPION
3 - 06311 - Mechanism (1 Locking point) Set. 1
LOCK SET 06312 - Mechanism (2 Locking point)
06313 - Mechanism (3 Locking point)
4 - 02764 - External recess pull handle
5 - 02765 - Blind internal recess pull handle

ITEM:
1 - 02760 - Recessed window handle OR 02762 - window handle
2 - 02720 - Champion plus 7.5 (270mm)
02721 - Champion plus 7.5 (600mm)
02722 - Champion plus 7.5 (1002mm)
02723 - Champion plus 7.5 (1800mm)
MULTIPOINT
3 - 06311 - Mechanism (1 Locking point) Set. 1
LOCK SET 06312 - Mechanism (2 Locking point)
06313 - Mechanism (3 Locking point)
4 - 02764 - External recess pull handle
5 - 02765 - Blind internal recess pull handle

03462 Pcs. 2

4.8 BREDI-S® Tables:hardware 57
