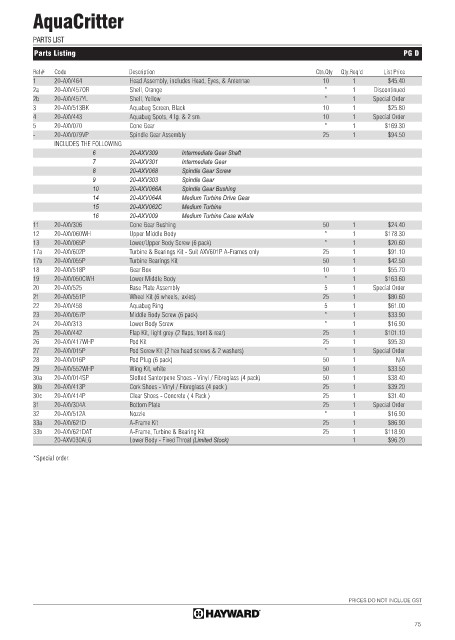

AquaCritter

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty Qty.Req’d List Price
1 20-AXV464 Head Assembly, includes Head, Eyes, & Antennae 10 1 $45.40
2a 20-AXV457OR Shell, Orange * 1 Discontinued
2b 20-AXV457YL Shell, Yellow * 1 Special Order
3 20-AXV513BK Aquabug Screen, Black 10 1 $25.80
4 20-AXV443 Aquabug Spots, 4 lg. & 2 sm. 10 1 Special Order
5 20-AXV070 Cone Gear * 1 $169.30
- 20-AXV079VP Spindle Gear Assembly 25 1 $94.50
INCLUDES THE FOLLOWING
6 20-AXV309 Intermediate Gear Shaft
7 20-AXV301 Intermediate Gear
8 20-AXV068 Spindle Gear Screw
9 20-AXV303 Spindle Gear
10 20-AXV066A Spindle Gear Bushing
14 20-AXV064A Medium Turbine Drive Gear
15 20-AXV062C Medium Turbine
16 20-AXV009 Medium Turbine Case w/Axle
11 20-AXV306 Cone Gear Bushing 50 1 $24.40
12 20-AXV060WH Upper Middle Body * 1 $178.30
13 20-AXV065P Lower/Upper Body Screw (6 pack) * 1 $20.60
17a 20-AXV602P Turbine & Bearings Kit - Suit AXV601P A-Frames only 25 1 $91.10
17b 20-AXV055P Turbine Bearings Kit 50 1 $42.50
18 20-AXV518P Gear Box 10 1 $55.70
19 20-AXV050CWH Lower Middle Body * 1 $163.60
20 20-AXV525 Base Plate Assembly 5 1 Special Order
21 20-AXV551P Wheel Kit (6 wheels, axles) 25 1 $80.60
22 20-AXV458 Aquabug Ring 5 1 $61.00
23 20-AXV057P Middle Body Screw (6 pack) * 1 $33.90
24 20-AXV313 Lower Body Screw * 1 $16.90
25 20-AXV442 Flap Kit, light grey (2 flaps, front & rear) 25 1 $101.10
26 20-AXV417WHP Pod Kit 25 1 $95.30
27 20-AXV015P Pod Screw Kit (2 hex head screws & 2 washers) * 1 Special Order
28 20-AXV016P Pod Plug (6 pack) 50 1 N/A
29 20-AXV552WHP Wing Kit, white 50 1 $33.50
30a 20-AXV014SP Slotted Santorpene Shoes - Vinyl / Fibreglass (4 pack) 50 1 $38.40
30b 20-AXV413P Cork Shoes - Vinyl / Fibreglass (4 pack ) 25 1 $39.20
30c 20-AXV414P Clear Shoes - Concrete ( 4 Pack ) 25 1 $31.40
31 20-AXV304A Bottom Plate 25 1 Special Order
32 20-AXV512A Nozzle * 1 $16.90
33a 20-AXV621D A-Frame Kit 25 1 $86.90
33b 20-AXV621DAT A-Frame, Turbine & Bearing Kit 25 1 $118.90
20-AXV030ALG Lower Body - Fixed Throat (Limited Stock) 1 $96.20

*Special order.

PRICES DO NOT INCLUDE GST

75
