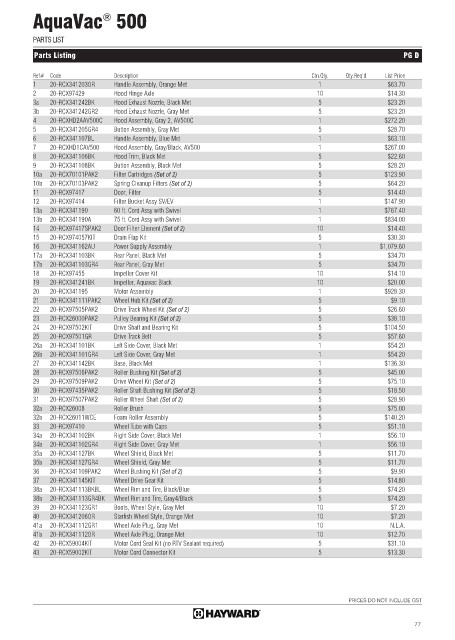

AquaVac 500
®

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-RCX341203OR Handle Assembly, Orange Met 1 $63.70
2 20-RCX97429 Hood Hinge Axle 10 $14.30
3a 20-RCX341242BK Hood Exhaust Nozzle, Black Met 5 $23.20
3b 20-RCX341242GR2 Hood Exhaust Nozzle, Gray Met 5 $23.20
4 20-RCXHD2AAV500C Hood Assembly, Gray 2, AV500C 1 $272.20
5 20-RCX341205GR4 Button Assembly, Gray Met 5 $28.70
6 20-RCX341107BL Handle Assembly, Blue Met 1 $63.10
7 20-RCXHD1CAV500 Hood Assembly, Gray/Black, AV500 1 $267.00
8 20-RCX341106BK Hood Trim, Black Met 5 $22.60
9 20-RCX341108BK Button Assembly, Black Met 5 $28.20
10a 20-RCX70101PAK2 Filter Cartridges (Set of 2) 5 $123.90
10b 20-RCX70103PAK2 Spring Cleanup Filters (Set of 2) 5 $64.20
11 20-RCX97417 Door, Filter 5 $14.40
12 20-RCX97414 Filter Bucket Assy SV/EV 1 $147.90
13a 20-RCX341190 60 ft. Cord Assy with Swivel 1 $767.40
13b 20-RCX341190A 75 ft. Cord Assy with Swivel 1 $834.00
14 20-RCX97417SPAK2 Door Filter Element (Set of 2) 10 $14.40
15 20-RCX974057KIT Drain Flap Kit 5 $30.30
16 20-RCX341162AU Power Supply Assembly 1 $1,079.60
17a 20-RCX341103BK Rear Panel, Black Met 5 $34.70
17b 20-RCX341103GR4 Rear Panel, Gray Met 5 $34.70
18 20-RCX97455 Impeller Cover Kit 10 $14.10
19 20-RCX341241BK Impeller, Aquavac Black 10 $20.00
20 20-RCX341195 Motor Assembly 1 $928.30
21 20-RCX341111PAK2 Wheel Hub Kit (Set of 2) 5 $9.10
22 20-RCX97505PAK2 Drive Track Wheel Kit (Set of 2) 5 $26.60
23 20-RCX26000PAK2 Pulley Bearing Kit (Set of 2) 5 $38.10
24 20-RCX97502KIT Drive Shaft and Bearing Kit 5 $104.50
25 20-RCX97501GR Drive Track Belt 5 $57.60
26a 20-RCX341101BK Left Side Cover, Black Met 1 $54.20
26b 20-RCX341101GR4 Left Side Cover, Gray Met 1 $54.20
27 20-RCX341142BK Base, Black Met 1 $136.30
28 20-RCX97506PAK2 Roller Bushing Kit (Set of 2) 5 $45.00
29 20-RCX97509PAK2 Drive Wheel Kit (Set of 2) 5 $75.10
30 20-RCX97435PAK2 Roller Shaft Bushing Kit (Set of 2) 5 $18.50
31 20-RCX97507PAK2 Roller Wheel Shaft (Set of 2) 5 $28.90
32a 20-RCX26008 Roller Brush 5 $75.00
32b 20-RCX26011WCE Foam Roller Assembly 5 $140.20
33 20-RCX97410 Wheel Tube with Caps 5 $51.10
34a 20-RCX341102BK Right Side Cover, Black Met 1 $56.10
34b 20-RCX341102GR4 Right Side Cover, Gray Met 1 $56.10
35a 20-RCX341127BK Wheel Shield, Black Met 5 $11.70
35b 20-RCX341127GR4 Wheel Shield, Gray Met 5 $11.70
36 20-RCX341109PAK2 Wheel Bushing Kit (Set of 2) 5 $9.90
37 20-RCX341145KIT Wheel Drive Gear Kit 5 $14.80
38a 20-RCX341113BKBL Wheel Rim and Tire, Black/Blue 5 $74.20
38b 20-RCX341113GR4BK Wheel Rim and Tire, Gray4/Black 5 $74.20
39 20-RCX341123GR1 Boots, Wheel Style, Gray Met 10 $7.20
40 20-RCX341206OR Starfish Wheel Style, Orange Met 10 $7.20
41a 20-RCX341112GR1 Wheel Axle Plug, Gray Met 10 N.L.A.
41b 20-RCX341112OR Wheel Axle Plug, Orange Met 10 $12.70
42 20-RCX59004KIT Motor Cord Seal Kit (no RTV Sealant required) 5 $31.10
43 20-RCX59002KIT Motor Cord Connector Kit 5 $13.30
