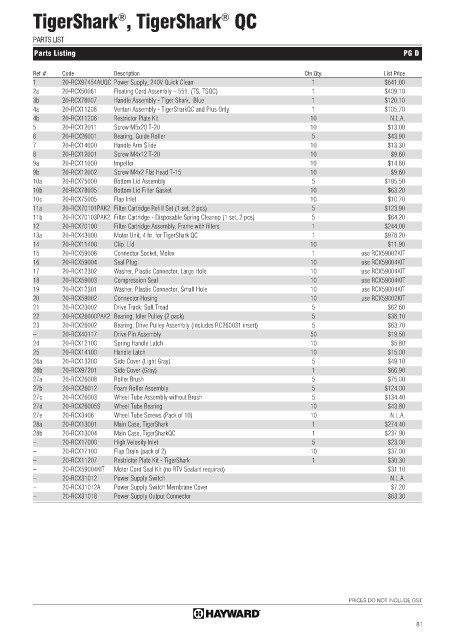

Page 85 - 2021 Hayward Buyers Guide

TigerShark , TigerShark QC
®
®
PARTS LIST

Parts Listing PG D

Ref # Code Description Ctn.Qty. List Price
1 20-RCX97454AUQC Power Supply, 240V Quick Clean 1 $641.00
2a 20-RCX50061 Floating Cord Assembly – 55ft. (TS, TSQC) 1 $409.10
3b 20-RCX76007 Handle Assembly - Tiger Shark, Blue 1 $120.10
4a 20-RCX11208 Venturi Assembly - TigerSharkQC and Plus Only 1 $105.70
4b 20-RCX11206 Restrictor Plate Kit 10 N.L.A.
5 20-RCX12011 Screw M5x20 T-20 10 $13.00
6 20-RCX26001 Bearing, Guide Roller 5 $43.90
7 20-RCX14000 Handle Arm Slide 10 $13.30
8 20-RCX12001 Screw M4x12 T-20 10 $9.60
9a 20-RCX11000 Impeller 10 $14.80
9b 20-RCX12002 Screw M4x2 Flat Head T-15 10 $9.60
10a 20-RCX75000 Bottom Lid Assembly 5 $195.50
10b 20-RCX78005 Bottom Lid Filter Gasket 10 $63.20
10c 20-RCX75005 Flap Inlet 10 $10.70
11a 20-RCX70101PAK2 Filter Cartridge Refill Set (1 set, 2 pcs) 5 $123.90
11b 20-RCX70103PAK2 Filter Cartridge - Disposable Spring Cleanup (1 set, 2 pcs) 5 $64.20
12 20-RCX70100 Filter Cartridge Assembly, Frame with filters 1 $244.00
13a 20-RCX43000 Motor Unit, 4 hr. for TigerShark QC 1 $978.20
14 20-RCX11400 Clip. Lid 10 $11.90
15 20-RCX59006 Connector Socket, Molex 1 use RCX59002KIT
16 20-RCX59004 Seal Plug 10 use RCX59004KIT
17 20-RCX12302 Washer, Plastic Connector, Large Hole 10 use RCX59004KIT
18 20-RCX59003 Compression Seal 10 use RCX59004KIT
19 20-RCX12301 Washer, Plastic Connector, Small Hole 10 use RCX59004KIT
20 20-RCX59002 Connector Hosing 10 use RCX59002KIT
21 20-RCX23002 Drive Track, Soft Tread 5 $62.60
22 20-RCX26000PAK2 Bearing, Idler Pulley (2 pack) 5 $38.10
23 20-RCX26002 Bearing, Drive Pulley Assembly (includes RC260031 insert) 5 $63.70
– 20-RCX40117 Drive Pin Assembly 50 $19.50
24 20-RCX12100 Spring Handle Latch 10 $5.80
25 20-RCX14100 Handle Latch 10 $15.00
26a 20-RCX13200 Side Cover (Light Gray) 5 $49.10
26b 20-RCX97201 Side Cover (Gray) 1 $66.90
27a 20-RCX26008 Roller Brush 5 $75.00
27b 20-RCX26012 Foam Roller Assembly 5 $124.00
27c 20-RCX26003 Wheel Tube Assembly without Brush 5 $134.40
27d 20-RCX26005S Wheel Tube Bearing 10 $43.80
27e 20-RCX3406 Wheel Tube Screws (Pack of 10) 10 N.L.A.
28a 20-RCX13001 Main Case, TigerShark 1 $274.40
28b 20-RCX13004 Main Case, TigerSharkQC 1 $237.90
– 20-RCX17000 High Velocity Inlet 5 $23.00
– 20-RCX17100 Flap Drain (pack of 2) 10 $37.00
– 20-RCX11207 Restrictor Plate Kit - TigerShark 1 $30.30
– 20-RCX59004KIT Motor Cord Seal Kit (no RTV Sealant required) $31.10
– 20-RCX31012 Power Supply Switch N.L.A.
– 20-RCX31012A Power Supply Switch Membrane Cover $7.20
– 20-RCX31018 Power Supply Output Connector $63.30

PRICES DO NOT INCLUDE GST

81
