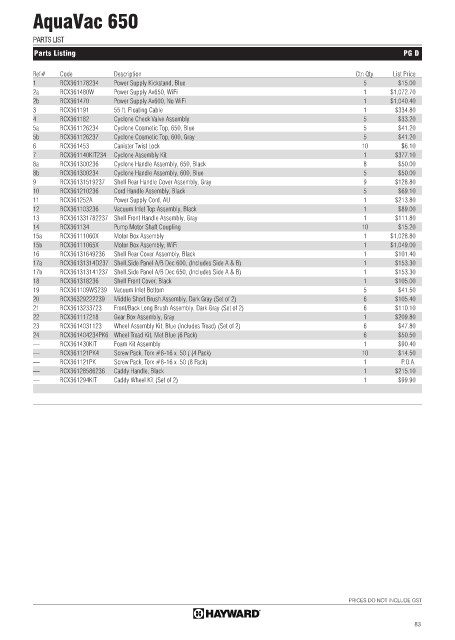

AquaVac 650

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn Qty. List Price
1 RCX361178234 Power Supply Kickstand, Blue 5 $15.00
2a RCX361480W Power Supply Av650, WiFi 1 $1,072.70
2b RCX361470 Power Supply Av600, No WiFi 1 $1,040.40
3 RCX361191 55 ft. Floating Cable 1 $334.80
4 RCX361182 Cyclone Check Valve Assembly 5 $33.20
5a RCX361126234 Cyclone Cosmetic Top, 650, Blue 5 $41.20
5b RCX361126237 Cyclone Cosmetic Top, 600, Gray 5 $41.20
6 RCX361453 Canister Twist Lock 10 $6.10
7 RCX361140KIT234 Cyclone Assembly Kit 1 $377.10
8a RCX361300236 Cyclone Handle Assembly, 650, Black 8 $50.00
8b RCX361300234 Cyclone Handle Assembly, 600, Blue 5 $50.00
9 RCX36131519237 Shell Rear Handle Cover Assembly, Gray 9 $128.80
10 RCX361210236 Cord Handle Assembly, Black 5 $69.10
11 RCX361252A Power Supply Cord, AU 1 $213.80
12 RCX361103236 Vacuum Inlet Top Assembly, Black 1 $89.00
13 RCX361331782237 Shell Front Handle Assembly, Gray 1 $111.80
14 RCX361134 Pump Motor Shaft Coupling 10 $15.20
15a RCX36111060X Motor Box Assembly 1 $1,028.80
15b RCX36111065X Motor Box Assembly, WiFi 1 $1,049.00
16 RCX36131649236 Shell Rear Cover Assembly, Black 1 $101.40
17a RCX36131314D237 Shell,Side Panel A/B Dec 600, (Includes Side A & B) 1 $153.30
17b RCX361313141237 Shell,Side Panel A/B Dec 650, (Includes Side A & B) 1 $153.30
18 RCX361318236 Shell Front Cover, Black 1 $105.00
19 RCX361109WS239 Vacuum Inlet Bottom 5 $41.50
20 RCX36329222239 Middle Short Brush Assembly, Dark Gray (Set of 2) 6 $105.40
21 RCX3613233723 Front/Back Long Brush Assembly, Dark Gray (Set of 2) 6 $110.10
22 RCX361117218 Gear Box Assembly, Gray 1 $209.80
23 RCX3614031123 Wheel Assembly Kit, Blue (Includes Tread) (Set of 2) 6 $47.80
24 RCX361404234PK6 Wheel Tread Kit, Met Blue (6 Pack) 6 $50.50
— RCX361430KIT Foam Kit Assembly 1 $90.40
— RCX361121PK4 Screw Pack, Torx #8-16 x .50 ( (4 Pack) 10 $14.50
— RCX361121PK Screw Pack, Torx #8-16 x .50 (8 Pack) 1 P.O.A.
— RCX36128586236 Caddy Handle, Black 1 $215.10
— RCX361294KIT Caddy Wheel Kit (Set of 2) 1 $99.90

PRICES DO NOT INCLUDE GST
