MaxFlo™ VS Pump and MaxFlo™ XL

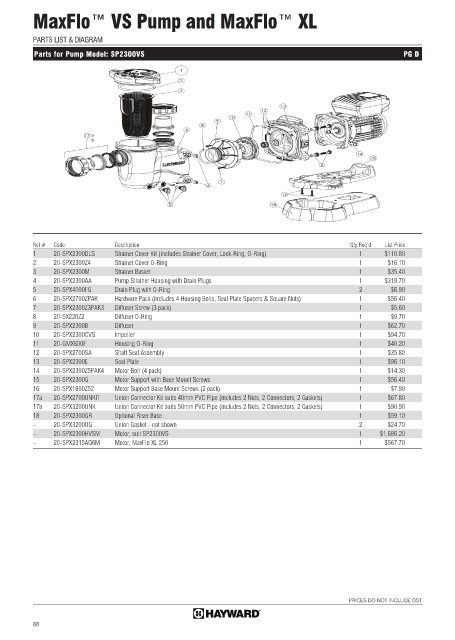

PARTS LIST & DIAGRAM

Parts for Pump Model: SP2300VS PG D

1

a
b

Ref # Code Description Qty.Req’d List Price
1 20-SPX2300DLS Strainer Cover Kit (includes Strainer Cover, Lock-Ring, O-Ring) 1 $110.80
2 20-SPX2300Z4 Strainer Cover O-Ring 1 $16.10
3 20-SPX2300M Strainer Basket 1 $35.40
4 20-SPX2300AA Pump Strainer Housing with Drain Plugs 1 $319.70
5 20-SPX4000FG Drain Plug with O-Ring 2 $6.90
6 20-SPX2700ZPAK Hardware Pack (includes 4 Housing Bolts, Seal Plate Spacers & Square Nuts) 1 $56.40
7 20-SPX2300Z3PAK3 Diffuser Screw (3 pack) 1 $5.60
8 20-SX220Z2 Diffuser O-Ring 1 $9.70
9 20-SPX2300B Diffuser 1 $62.70
10 20-SPX2300CVS Impeller 1 $94.70
11 20-GMX600F Housing O-Ring 1 $40.20
12 20-SPX2700SA Shaft Seal Assembly 1 $35.80
13 20-SPX2300E Seal Plate 1 $96.10
14 20-SPX2300Z5PAK4 Motor Bolt (4 pack) 1 $14.30
15 20-SPX2300G Motor Support with Base Mount Screws 1 $56.40
16 20-SPX1600Z52 Motor Support Base Mount Screws (2 pack) 1 $7.90
17a 20-SPX2700UNKIT Union Connector Kit suits 40mm PVC Pipe (includes 2 Nuts, 2 Connectors, 2 Gaskets) 1 $67.80
17b 20-SPX3200UNK Union Connector Kit suits 50mm PVC Pipe (includes 2 Nuts, 2 Connectors, 2 Gaskets) 1 $90.90
18 20-SPX2300GR Optional Riser Base 1 $59.10
– 20-SPX3200UG Union Gasket - not shown 2 $24.70
– 20-SPX2300HVSM Motor, suit SP2300VS 1 $1,686.20
– 20-SPX2315AQ6M Motor, MaxFlo XL 250 1 $567.70

PRICES DO NOT INCLUDE GST
