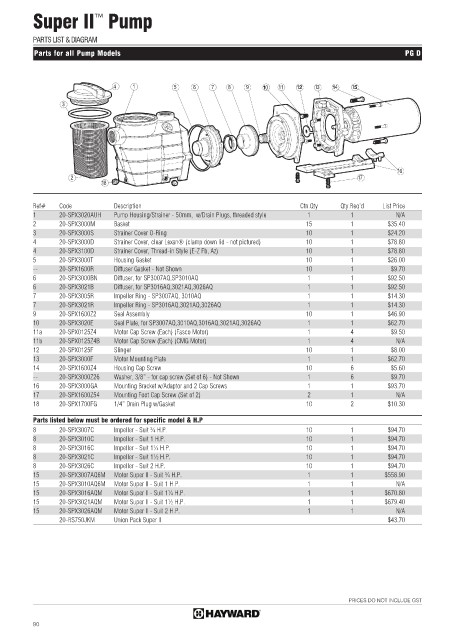

Super II Pump
™

PARTS LIST & DIAGRAM

Parts for all Pump Models PG D

4 1 5 6 7 8 9 10 11 12 13 14 15

3

16
2 17
18

Ref# Code Description Ctn.Qty Qty.Req’d List Price
1 20-SPX3020AUH Pump Housing/Strainer - 50mm, w/Drain Plugs, threaded style 1 1 N/A
2 20-SPX3000M Basket 15 1 $35.40
3 20-SPX3000S Strainer Cover O-Ring 10 1 $24.20
4 20-SPX3000D Strainer Cover, clear Lexan® (clamp down lid - not pictured) 10 1 $78.80
4 20-SPX3100D Strainer Cover, Thread-in Style (E-Z Fb, Az) 10 1 $78.80
5 20-SPX3000T Housing Gasket 10 1 $26.00
-- 20-SPX1600R Diffuser Gasket - Not Shown 10 1 $9.70
6 20-SPX3000BN Diffuser, for SP3007AQ,SP3010AQ 1 1 $92.50
6 20-SPX3021B Diffuser, for SP3016AQ,3021AQ,3026AQ 1 1 $92.50
7 20-SPX3005R Impeller Ring - SP3007AQ, 3010AQ 1 1 $14.30
7 20-SPX3021R Impeller Ring - SP3016AQ,3021AQ,3026AQ 1 1 $14.30
9 20-SPX1600Z2 Seal Assembly 10 1 $46.90
10 20-SPX3020E Seal Plate, for SP3007AQ,3010AQ,3016AQ,3021AQ,3026AQ 1 1 $62.70
11a 20-SPX0125Z4 Motor Cap Screw (Each) (Fasco Motor) 1 4 $9.50
11b 20-SPX0125Z4B Motor Cap Screw (Each) (CMG Motor) 1 4 N/A
12 20-SPX0125F Slinger 10 1 $8.00
13 20-SPX3000F Motor Mounting Plate 1 1 $62.70
14 20-SPX1600Z4 Housing Cap Screw 10 6 $5.60
-- 20-SPX3000Z26 Washer, 3/8” - for cap screw (Set of 6) - Not Shown 1 6 $9.70
16 20-SPX3000GA Mounting Bracket w/Adaptor and 2 Cap Screws 1 1 $93.70
17 20-SPX1600Z54 Mounting Foot Cap Screw (Set of 2) 2 1 N/A
18 20-SPX1700FG 1/4” Drain Plug w/Gasket 10 2 $10.30

Parts listed below must be ordered for specific model & H.P
8 20-SPX3007C Impeller - Suit ¾ H.P. 10 1 $94.70
8 20-SPX3010C Impeller - Suit 1 H.P. 10 1 $94.70
8 20-SPX3016C Impeller - Suit 1¼ H.P. 10 1 $94.70
8 20-SPX3021C Impeller - Suit 1½ H.P. 10 1 $94.70
8 20-SPX3026C Impeller - Suit 2 H.P. 10 1 $94.70
15 20-SPX3007AQ6M Motor Super II - Suit ¾ H.P. 1 1 $558.90
15 20-SPX3010AQ6M Motor Super II - Suit 1 H.P. 1 1 N/A
15 20-SPX3016AQM Motor Super II - Suit 1¼ H.P. 1 1 $670.80
15 20-SPX3021AQM Motor Super II - Suit 1½ H.P. 1 1 $679.40
15 20-SPX3026AQM Motor Super II - Suit 2 H.P. 1 1 N/A
20-RS750JKM Union Pack Super II $43.70
