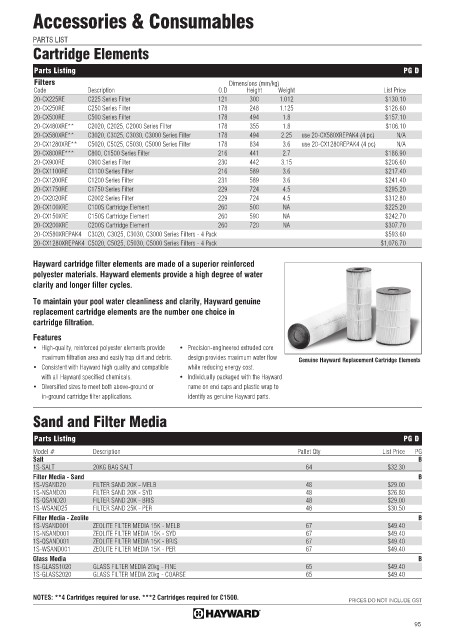

Page 99 - 2021 Hayward Buyers Guide

Accessories & Consumables

PARTS LIST
Cartridge Elements

Parts Listing PG D
Filters Dimensions (mm/kg)
Code Description O.D Height Weight List Price
20-CX225RE C225 Series Filter 121 300 1.012 $130.10
20-CX250RE C250 Series Filter 178 248 1.125 $126.60
20-CX500RE C500 Series Filter 178 494 1.8 $157.10
20-CX480XRE** C2020, C2025, C2000 Series Filter 178 355 1.8 $106.10
20-CX580XRE** C3020, C3025, C3030, C3000 Series Filter 178 494 2.25 use 20-CX580XREPAK4 (4 pc) N/A
20-CX1280XRE** C5020, C5025, C5030, C5000 Series Filter 178 834 3.6 use 20-CX1280REPAK4 (4 pc) N/A
20-CX800RE*** C800, C1500 Series Filter 216 441 2.7 $186.90
20-CX900RE C900 Series Filter 230 442 3.15 $206.60
20-CX1100RE C1100 Series Filter 216 589 3.6 $217.40
20-CX1200RE C1200 Series Filter 231 589 3.6 $241.40
20-CX1750RE C1750 Series Filter 229 724 4.5 $295.20
20-CX2020RE C2002 Series Filter 229 724 4.5 $312.80
20-CX100XRE C100S Cartridge Element 260 500 NA $225.20
20-CX150XRE C150S Cartridge Element 260 590 NA $242.70
20-CX200XRE C200S Cartridge Element 260 720 NA $307.70
20-CX580XREPAK4 C3020, C3025, C3030, C3000 Series Filters - 4 Pack $593.60
20-CX1280XREPAK4 C5020, C5025, C5030, C5000 Series Filters - 4 Pack $1,076.70

Hayward cartridge filter elements are made of a superior reinforced
polyester materials. Hayward elements provide a high degree of water
clarity and longer filter cycles.

To maintain your pool water cleanliness and clarity, Hayward genuine
replacement cartridge elements are the number one choice in
cartridge filtration.

Features
• High-quality, reinforced polyester elements provide • Precision-engineered extruded core
maximum filtration area and easily trap dirt and debris. design provides maximum water flow Genuine Hayward Replacement Cartridge Elements
• Consistent with Hayward high quality and compatible while reducing energy cost.
with all Hayward specified chemicals. • Individually packaged with the Hayward
• Diversified sizes to meet both above-ground or name on end caps and plastic wrap to
in-ground cartridge filter applications. identify as genuine Hayward parts.

Sand and Filter Media

Parts Listing PG D
Model # Description Pallet Qty List Price PG
Salt B
1S-SALT 20KG BAG SALT 64 $32.30
Filter Media - Sand B
1S-VSAND20 FILTER SAND 20K - MELB 48 $29.00
1S-NSAND20 FILTER SAND 20K - SYD 48 $26.80
1S-QSAND20 FILTER SAND 20K - BRIS 48 $29.00
1S-WSAND25 FILTER SAND 25K - PER 48 $30.50
Filter Media - Zeolite B
1S-VSAND001 ZEOLITE FILTER MEDIA 15K - MELB 67 $49.40
1S-NSAND001 ZEOLITE FILTER MEDIA 15K - SYD 67 $49.40
1S-QSAND001 ZEOLITE FILTER MEDIA 15K - BRIS 67 $49.40
1S-WSAND001 ZEOLITE FILTER MEDIA 15K - PER 67 $49.40
Glass Media B
1S-GLASS1020 GLASS FILTER MEDIA 20kg - FINE 65 $49.40
1S-GLASS2020 GLASS FILTER MEDIA 20kg - COARSE 65 $49.40

NOTES: **4 Cartridges required for use. ***2 Cartridges required for C1500. PRICES DO NOT INCLUDE GST

95
