Booster Pump

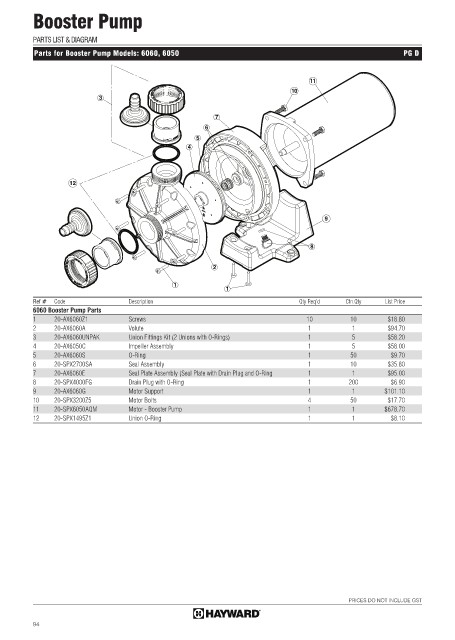

PARTS LIST & DIAGRAM
Parts for Booster Pump Models: 6060, 6050 PG D
11
10
3
7
6
5
4
12
9
8
2
1
1
Ref # Code Description Qty Req’d Ctn.Qty List Price
6060 Booster Pump Parts
1 20-AX6060Z1 Screws 10 10 $18.80
2 20-AX6060A Volute 1 1 $94.70
3 20-AX6060UNPAK Union Fittings Kit (2 Unions with O-Rings) 1 5 $58.20
4 20-AX6050C Impeller Assembly 1 5 $58.00
5 20-AX6060S O-Ring 1 50 $9.70
6 20-SPX2700SA Seal Assembly 1 10 $35.80
7 20-AX6060E Seal Plate Assembly (Seal Plate with Drain Plug and O-Ring 1 1 $95.00
8 20-SPX4000FG Drain Plug with O-Ring 1 200 $6.90
9 20-AX6060G Motor Support 1 1 $101.10
10 20-SPX3200Z5 Motor Bolts 4 50 $17.70
11 20-SPX6050AQM Motor - Booster Pump 1 1 $678.70
12 20-SPX1495Z1 Union O-Ring 1 1 $8.10
PRICES DO NOT INCLUDE GST
