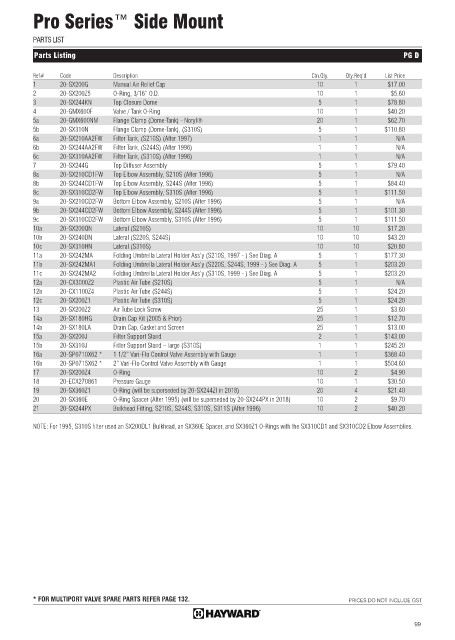

Pro Series™ Side Mount

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-SX200G Manual Air Relief Cap 10 1 $17.00
2 20-SX200Z5 O-Ring, 3/16” O.D. 10 1 $5.60
3 20-SX244KN Top Closure Dome 5 1 $78.80
4 20-GMX600F Valve / Tank O-Ring 10 1 $40.20
5a 20-GMX600NM Flange Clamp (Dome-Tank) - Noryl® 20 1 $62.70
5b 20-SX310N Flange Clamp (Dome-Tank), (S310S) 5 1 $110.80
6a 20-SX210AA2FW Filter Tank, (S210S) (After 1997) 1 1 N/A
6b 20-SX244AA2FW Filter Tank, (S244S) (After 1996) 1 1 N/A
6c 20-SX310AA2FW Filter Tank, (S310S) (After 1996) 1 1 N/A
7 20-SX244G Top Diffuser Assembly 5 1 $79.40
8a 20-SX210CD1FW Top Elbow Assembly, S210S (After 1996) 5 1 N/A
8b 20-SX244CD1FW Top Elbow Assembly, S244S (After 1996) 5 1 $84.40
8c 20-SX310CD2FW Top Elbow Assembly, S310S (After 1996) 5 1 $111.50
9a 20-SX210CD2FW Bottom Elbow Assembly, S210S (After 1996) 5 1 N/A
9b 20-SX244CD2FW Bottom Elbow Assembly, S244S (After 1996) 5 1 $101.30
9c 20-SX310CD2FW Bottom Elbow Assembly, S310S (After 1996) 5 1 $111.50
10a 20-SX200QN Lateral (S210S) 10 10 $17.20
10b 20-SX240DN Lateral (S220S, S244S) 10 10 $43.20
10c 20-SX310HN Lateral (S310S) 10 10 $20.80
11a 20-SX242MA Folding Umbrella Lateral Holder Ass’y (S210S, 1997 - ) See Diag. A 5 1 $177.30
11b 20-SX242MA1 Folding Umbrella Lateral Holder Ass’y (S220S, S244S, 1999 - ) See Diag. A 5 1 $203.20
11c 20-SX242MA2 Folding Umbrella Lateral Holder Ass’y (S310S, 1999 - ) See Diag. A 5 1 $203.20
12a 20-CX3000Z2 Plastic Air Tube (S210S) 5 1 N/A
12b 20-CX1100Z4 Plastic Air Tube (S244S) 5 1 $24.20
12c 20-SX200Z1 Plastic Air Tube (S310S) 5 1 $24.20
13 20-SX200Z2 Air Tube Lock Screw 25 1 $3.60
14a 20-SX180HG Drain Cap Kit (2005 & Prior) 25 1 $12.70
14b 20-SX180LA Drain Cap, Gasket and Screen 25 1 $13.00
15a 20-SX200J Filter Support Stand 2 1 $143.00
15b 20-SX310J Fitler Support Stand – large (S310S) 1 1 $245.20
16a 20-SP0710X62 * 1 1/2” Vari-Flo Control Valve Assembly with Gauge 1 1 $368.40
16b 20-SP0715X62 * 2” Vari-Flo Control Valve Assembly with Gauge 1 1 $504.60
17 20-SX200Z4 O-Ring 10 2 $4.90
18 20-ECX270861 Pressure Gauge 10 1 $30.50
19 20-SX360Z1 O-Ring (will be superseded by 20-SX244ZI in 2018) 20 4 $21.40
20 20-SX360E O-Ring Spacer (After 1995) (will be superseded by 20-SX244PX in 2018) 10 2 $9.70
21 20-SX244PX Bulkhead Fitting, S210S, S244S, S310S, S311S (After 1996) 10 2 $40.20

NOTE: For 1995, S310S filter used an SX200DL1 Bulkhead, an SX360E Spacer, and SX360Z1 O-Rings with the SX310CD1 and SX310CD2 Elbow Assemblies.

* FOR MULTIPORT VALVE SPARE PARTS REFER PAGE 132. PRICES DO NOT INCLUDE GST
