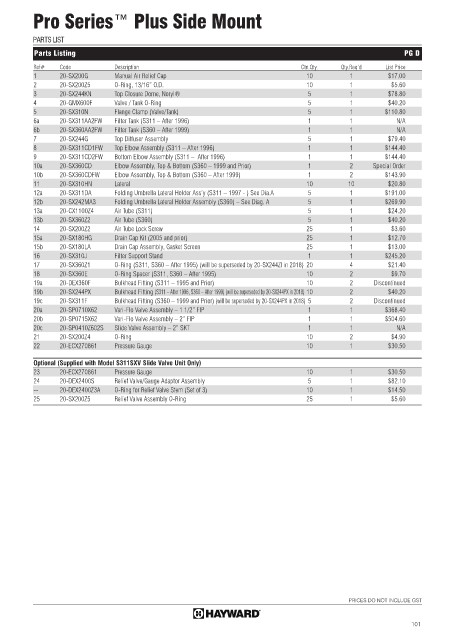

Pro Series™ Plus Side Mount
PARTS LIST
Parts Listing PG D
Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-SX200G Manual Air Relief Cap 10 1 $17.00
2 20-SX200Z5 O-Ring, 13/16” O.D. 10 1 $5.60
3 20-SX244KN Top Closure Dome, Noryl® 5 1 $78.80
4 20-GMX600F Valve / Tank O-Ring 5 1 $40.20
5 20-SX310N Flange Clamp (Valve/Tank) 5 1 $110.80
6a 20-SX311AA2FW Filter Tank (S311 – After 1996) 1 1 N/A
6b 20-SX360AA2FW Filter Tank (S360 – After 1999) 1 1 N/A
7 20-SX244G Top Diffuser Assembly 5 1 $79.40
8 20-SX311CD1FW Top Elbow Assembly (S311 – After 1996) 1 1 $144.40
9 20-SX311CD2FW Bottom Elbow Assembly (S311 – After 1996) 1 1 $144.40
10a 20-SX360CD Elbow Assembly, Top & Bottom (S360 – 1999 and Prior) 1 2 Special Order
10b 20-SX360CDFW Elbow Assembly, Top & Bottom (S360 – After 1999) 1 2 $143.90
11 20-SX310HN Lateral 10 10 $20.80
12a 20-SX311DA Folding Umbrella Lateral Holder Ass’y (S311 – 1997 - ) See Dia.A 5 1 $191.00
12b 20-SX242MA3 Folding Umbrella Lateral Holder Assembly (S360) – See Diag. A 5 1 $269.90
13a 20-CX1100Z4 Air Tube (S311) 5 1 $24.20
13b 20-SX360Z2 Air Tube (S360) 5 1 $40.20
14 20-SX200Z2 Air Tube Lock Screw 25 1 $3.60
15a 20-SX180HG Drain Cap Kit (2005 and prior) 25 1 $12.70
15b 20-SX180LA Drain Cap Assembly, Gasket Screen 25 1 $13.00
16 20-SX310J Filter Support Stand 1 1 $245.20
17 20-SX360Z1 O-Ring (S311, S360 – After 1995) (will be superseded by 20-SX244ZI in 2018) 20 4 $21.40
18 20-SX360E O-Ring Spacer (S311, S360 – After 1995) 10 2 $9.70
19a 20-DEX360F Bulkhead Fitting (S311 – 1995 and Prior) 10 2 Discontinued
19b 20-SX244PX Bulkhead Fitting (S311 – After 1996, S360 – After 1999) (will be superseded by 20-SX244PX in 2018) 10 2 $40.20
19c 20-SX311F Bulkhead Fitting (S360 – 1999 and Prior) (will be superseded by 20-SX244PX in 2018) 5 2 Discontinued
20a 20-SP0710X62 Vari-Flo Valve Assembly – 1 1/2” FIP 1 1 $368.40
20b 20-SP0715X62 Vari-Flo Valve Assembly – 2” FIP 1 1 $504.60
20c 20-SP0410Z602S Slide Valve Assembly – 2” SKT 1 1 N/A
21 20-SX200Z4 O-Ring 10 2 $4.90
22 20-ECX270861 Pressure Gauge 10 1 $30.50
Optional (Supplied with Model S311SXV Slide Valve Unit Only)
23 20-ECX270861 Pressure Gauge 10 1 $30.50
24 20-DEX2400S Relief Valve/Gauge Adaptor Assembly 5 1 $82.10
-- 20-DEX2400Z3A O-Ring for Relief Valve Stem (Set of 3) 10 1 $14.50
25 20-SX200Z5 Relief Valve Assembly O-Ring 25 1 $5.60
PRICES DO NOT INCLUDE GST
