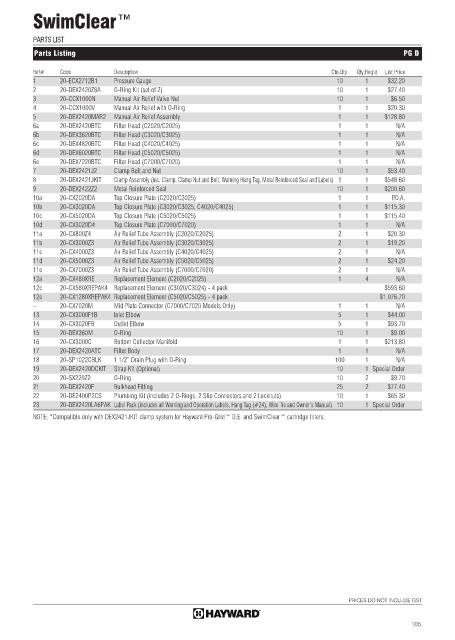

SwimClear™

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-ECX2712B1 Pressure Gauge 10 1 $32.20
2 20-DEX2420Z8A O-Ring Kit (set of 2) 10 1 $27.40
3 20-CCX1000N Manual Air Relief Valve Nut 10 1 $6.50
4 20-CCX1000V Manual Air Relief with O-Ring 1 1 $20.30
5 20-DEX2420MAR2 Manual Air Relief Assembly 1 1 $128.80
6a 20-DEX2420BTC Filter Head (C2020/C2025) 1 1 N/A
6b 20-DEX3620BTC Filter Head (C3020/C3025) 1 1 N/A
6c 20-DEX4820BTC Filter Head (C4020/C4025) 1 1 N/A
6d 20-DEX6020BTC Filter Head (C5020/C5025) 1 1 N/A
6e 20-DEX7220BTC Filter Head (C7000/C7020) 1 1 N/A
7 20-DEX2421J2 Clamp Bolt and Nut 10 1 $53.40
8 20-DEX2421JKIT Clamp Assembly (inc. Clamp, Clamp Nut and Bolt, Warning Hang Tag, Metal Reinforced Seal and Labels) 1 1 $548.60
9 20-DEX2422Z2 Metal Reinforced Seal 10 1 $200.60
10a 20-CX2020DA Top Closure Plate (C2020/C2025) 1 1 P.O.A.
10b 20-CX3020DA Top Closure Plate (C3020/C3025, C4020/C4025) 1 1 $115.30
10c 20-CX5020DA Top Closure Plate (C5020/C5025) 1 1 $115.40
10d 20-CX3020D4 Top Closure Plate (C7000/C7020) 1 1 N/A
11a 20-CX800Z4 Air Relief Tube Assembly (C2020/C2025) 2 1 $20.30
11b 20-CX3000Z3 Air Relief Tube Assembly (C3020/C3025) 2 1 $19.20
11c 20-CX4000Z3 Air Relief Tube Assembly (C4020/C4025) 2 1 N/A
11d 20-CX5000Z3 Air Relief Tube Assembly (C5020/C5025) 2 1 $24.20
11e 20-CX7000Z3 Air Relief Tube Assembly (C7000/C7020) 2 1 N/A
12a 20-CX480XRE Replacement Element (C2020/C2025) 1 4 N/A
12c 20-CX580XREPAK4 Replacement Element (C3020/C3024) - 4 pack $593.60
12e 20-CX1280XREPAK4 Replacement Element (C5020/C5025) - 4 pack $1,076.70
– 20-CX7020M Mid Plate Connector (C7000/C7020 Models Only) 1 1 N/A
13 20-CX3000F1B Inlet Elbow 5 1 $44.00
14 20-CX3020FB Outlet Elbow 5 1 $93.70
15 20-DEX360M O-Ring 10 1 $9.00
16 20-CX3000C Bottom Collector Manifold 1 1 $213.80
17 20-DEX2420ATC Filter Body 1 1 N/A
18 20-SP1022CBLK 1 1/2” Drain Plug with O-Ring 100 1 N/A
19 20-DEX2420DCKIT Strap Kit (Optional) 10 1 Special Order
20 20-SX220Z2 O-Ring 10 2 $9.70
21 20-DEX2420F Bulkhead Fitting 25 2 $77.40
22 20-DE2400P2CS Plumbing Kit (includes 2 O-Rings, 2 Slip Connectors and 2 Locknuts) 10 1 $65.30
23 20-DEX2420LA6PAK Label Pack (includes all Warning and Operation Labels, Hang Tag (#24), Wire Tie and Owner’s Manual) 10 1 Special Order
NOTE: *Compatible only with DEX2421JKIT clamp system for Hayward Pro-Grid™ D.E. and SwimClear™ cartridge filters.
