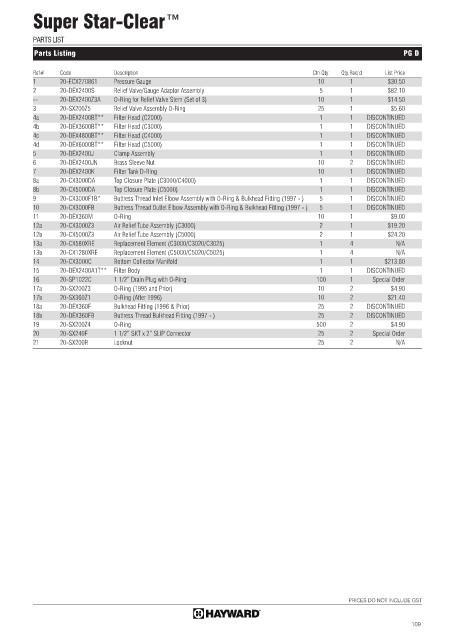

Page 113 - 2021 Hayward Buyers Guide

Super Star-Clear™

PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-ECX270861 Pressure Gauge 10 1 $30.50
2 20-DEX2400S Relief Valve/Gauge Adaptor Assembly 5 1 $82.10
-- 20-DEX2400Z3A O-Ring for Relief Valve Stem (Set of 3) 10 1 $14.50
3 20-SX200Z5 Relief Valve Assembly O-Ring 25 1 $5.60
4a 20-DEX2400BT** Filter Head (C2000) 1 1 DISCONTINUED
4b 20-DEX3600BT** Filter Head (C3000) 1 1 DISCONTINUED
4c 20-DEX4800BT** Filter Head (C4000) 1 1 DISCONTINUED
4d 20-DEX6000BT** Filter Head (C5000) 1 1 DISCONTINUED
5 20-DEX2400J Clamp Assembly 1 1 DISCONTINUED
6 20-DEX2400JN Brass Sleeve Nut 10 2 DISCONTINUED
7 20-DEX2400K Filter Tank D-Ring 10 1 DISCONTINUED
8a 20-CX3000DA Top Closure Plate (C3000/C4000) 1 1 DISCONTINUED
8b 20-CX5000DA Top Closure Plate (C5000) 1 1 DISCONTINUED
9 20-CX3000F1B* Buttress Thread Inlet Elbow Assembly with O-Ring & Bulkhead Fitting (1997 - ) 5 1 DISCONTINUED
10 20-CX3000FB Buttress Thread Outlet Elbow Assembly with O-Ring & Bulkhead Fitting (1997 - ) 5 1 DISCONTINUED
11 20-DEX360M O-Ring 10 1 $9.00
12a 20-CX3000Z3 Air Relief Tube Assembly (C3000) 2 1 $19.20
12b 20-CX5000Z3 Air Relief Tube Assembly (C5000) 2 1 $24.20
13a 20-CX580XRE Replacement Element (C3000/C3020/C3025) 1 4 N/A
13b 20-CX1280XRE Replacement Element (C5000/C5020/C5025) 1 4 N/A
14 20-CX3000C Bottom Collector Manifold 1 1 $213.80
15 20-DEX2400A1T** Filter Body 1 1 DISCONTINUED
16 20-SP1022C 1 1/2” Drain Plug with O-Ring 100 1 Special Order
17a 20-SX200Z3 O-Ring (1995 and Prior) 10 2 $4.90
17b 20-SX360Z1 O-Ring (After 1996) 10 2 $21.40
18a 20-DEX360F Bulkhead Fitting (1996 & Prior) 25 2 DISCONTINUED
18b 20-DEX360FB Buttress Thread Bulkhead Fitting (1997 - ) 25 2 DISCONTINUED
19 20-SX200Z4 O-Ring 500 2 $4.90
20 20-SX240F 1 1/2” SKT x 2” SLIP Connector 25 2 Special Order
21 20-SX200R Locknut 25 2 N/A

PRICES DO NOT INCLUDE GST

109
