Page 116 - 2021 Hayward Buyers Guide
P. 116
Micro Star-Clear™

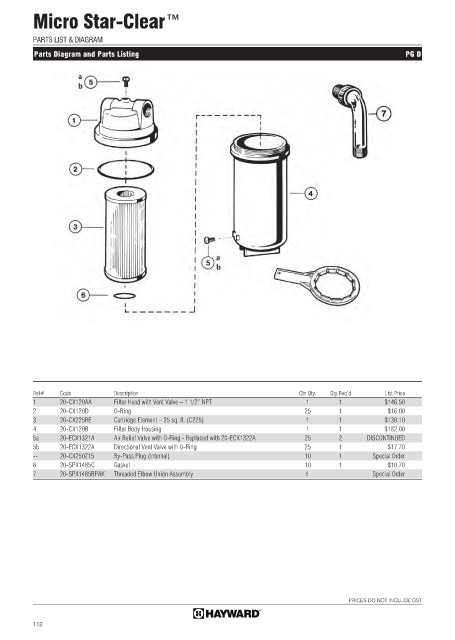

PARTS LIST & DIAGRAM
Parts Diagram and Parts Listing PG D
Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-CX120AA Filter Head with Vent Valve – 1 1/2” NPT 1 1 $146.50
2 20-CX120D O-Ring 25 1 $16.00
3 20-CX225RE Cartridge Element – 25 sq. ft. (C225) 1 1 $130.10
4 20-CX120B Filter Body Housing 1 1 $182.00
5a 20-ECX1321A Air Relief Valve with O-Ring - Replaced with 20-ECX1322A 25 2 DISCONTINUED
5b 20-ECX1322A Directional Vent Valve with O-Ring 25 1 $17.70
-- 20-CX250Z15 By-Pass Plug (Internal) 10 1 Special Order
6 20-SPX1485C Gasket 10 1 $10.70
7 20-SPX1485BPAK Threaded Elbow Union Assembly 1 Special Order
PRICES DO NOT INCLUDE GST
112
