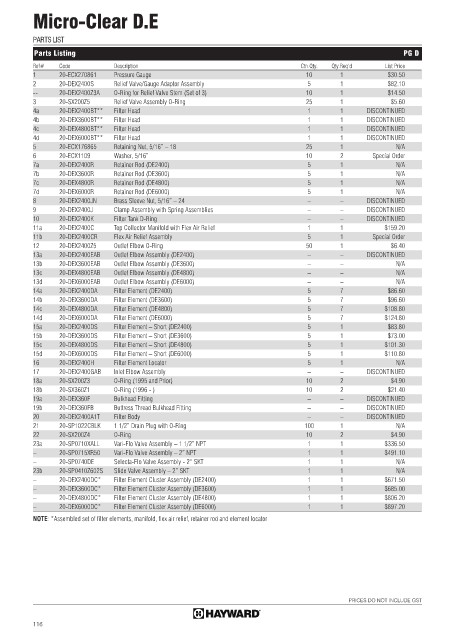

Page 120 - 2021 Hayward Buyers Guide

Micro-Clear D.E

PARTS LIST

Parts Listing PG D
Ref# Code Description Ctn.Qty. Qty.Req’d List Price
1 20-ECX270861 Pressure Gauge 10 1 $30.50
2 20-DEX2400S Relief Valve/Gauge Adaptor Assembly 5 1 $82.10
-- 20-DEX2400Z3A O-Ring for Relief Valve Stem (Set of 3) 10 1 $14.50
3 20-SX200Z5 Relief Valve Assembly O-Ring 25 1 $5.60
4a 20-DEX2400BT** Filter Head 1 1 DISCONTINUED
4b 20-DEX3600BT** Filter Head 1 1 DISCONTINUED
4c 20-DEX4800BT** Filter Head 1 1 DISCONTINUED
4d 20-DEX6000BT** Filter Head 1 1 DISCONTINUED
5 20-ECX176865 Retaining Nut, 5/16” – 18 25 1 N/A
6 20-ECX1109 Washer, 5/16” 10 2 Special Order
7a 20-DEX2400R Retainer Rod (DE2400) 5 1 N/A
7b 20-DEX3600R Retainer Rod (DE3600) 5 1 N/A
7c 20-DEX4800R Retainer Rod (DE4800) 5 1 N/A
7d 20-DEX6000R Retainer Rod (DE6000) 5 1 N/A
8 20-DEX2400JN Brass Sleeve Nut, 5/16” – 24 – – DISCONTINUED
9 20-DEX2400J Clamp Assembly with Spring Assemblies – – DISCONTINUED
10 20-DEX2400K Filter Tank D-Ring – – DISCONTINUED
11a 20-DEX2400C Top Collector Manifold with Flex Air Relief 1 1 $159.20
11b 20-DEX2400CR Flex Air Relief Assembly 5 1 Special Order
12 20-DEX2400Z5 Outlet Elbow O-Ring 50 1 $6.40
13a 20-DEX2400EAB Outlet Elbow Assembly (DE2400) – – DISCONTINUED
13b 20-DEX3600EAB Outlet Elbow Assembly (DE3600) – – N/A
13c 20-DEX4800EAB Outlet Elbow Assembly (DE4800) – – N/A
13d 20-DEX6000EAB Outlet Elbow Assembly (DE6000) – – N/A
14a 20-DEX2400DA Filter Element (DE2400) 5 7 $86.60
14b 20-DEX3600DA Filter Element (DE3600) 5 7 $96.60
14c 20-DEX4800DA Filter Element (DE4800) 5 7 $108.80
14d 20-DEX6000DA Filter Element (DE6000) 5 7 $124.80
15a 20-DEX2400DS Filter Element – Short (DE2400) 5 1 $83.80
15b 20-DEX3600DS Filter Element – Short (DE3600) 5 1 $73.00
15c 20-DEX4800DS Filter Element – Short (DE4800) 5 1 $101.30
15d 20-DEX6000DS Filter Element – Short (DE6000) 5 1 $110.80
16 20-DEX2400H Filter Element Locator 5 1 N/A
17 20-DEX2400GAB Inlet Elbow Assembly – – DISCONTINUED
18a 20-SX200Z3 O-Ring (1995 and Prior) 10 2 $4.90
18b 20-SX360Z1 O-Ring (1996 - ) 10 2 $21.40
19a 20-DEX360F Bulkhead Fitting – – DISCONTINUED
19b 20-DEX360FB Buttress Thread Bulkhead Fitting – – DISCONTINUED
20 20-DEX2400A1T Filter Body – – DISCONTINUED
21 20-SP1022CBLK 1 1/2” Drain Plug with O-Ring 100 1 N/A
22 20-SX200Z4 O-Ring 10 2 $4.90
23a 20-SP0710XALL Vari-Flo Valve Assembly – 1 1/2” NPT 1 1 $336.50
– 20-SP0715XR50 Vari-Flo Valve Assembly – 2” NPT 1 1 $491.10
– 20-SP0740DE Selecta-Flo Valve Assembly - 2“ SKT 1 1 N/A
23b 20-SP0410Z602S Slide Valve Assembly – 2” SKT 1 1 N/A
– 20-DEX2400DC* Filter Element Cluster Assembly (DE2400) 1 1 $671.50
– 20-DEX3600DC* Filter Element Cluster Assembly (DE3600) 1 1 $685.00
– 20-DEX4800DC* Filter Element Cluster Assembly (DE4800) 1 1 $806.20
– 20-DEX6000DC* Filter Element Cluster Assembly (DE6000) 1 1 $897.20
NOTE: *Assembled set of filter elements, manifold, flex air relief, retainer rod and element locator

PRICES DO NOT INCLUDE GST

116
