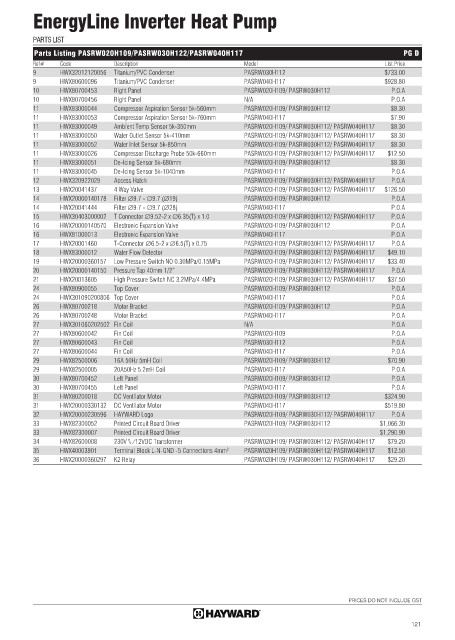

EnergyLine Inverter Heat Pump

PARTS LIST

Parts Listing PASRW020H109/PASRW030H122/PASRW040H117 PG D
Ref# Code Description Model List Price
9 HWX32012120056 Titanium/PVC Condenser PASRW030H112 $733.00
9 HWX80600096 Titanium/PVC Condenser PASRW040H117 $928.80
10 HWX80700453 Right Panel PASRW020H109/ PASRW030H112 P.O.A
10 HWX80700456 Right Panel N/A P.O.A
11 HWX83000044 Compressor Aspiration Sensor 5k-560mm PASRW020H109/ PASRW030H112 $8.30
11 HWX83000053 Compressor Aspiration Sensor 5k-760mm PASRW040H117 $7.90
11 HWX83000049 Ambient Temp Sensor 5k-350mm PASRW020H109/ PASRW030H112/ PASRW040H117 $8.30
11 HWX83000050 Water Outlet Sensor 5k-410mm PASRW020H109/ PASRW030H112/ PASRW040H117 $8.30
11 HWX83000052 Water Inlet Sensor 5k-850mm PASRW020H109/ PASRW030H112/ PASRW040H117 $8.30
11 HWX83000026 Compressor Discharge Probe 50k-660mm PASRW020H109/ PASRW030H112/ PASRW040H117 $12.50
11 HWX83000051 De-Icing Sensor 5k-680mm PASRW020H109/ PASRW030H112 $8.30
11 HWX83000045 De-Icing Sensor 5k-1040mm PASRW040H117 P.O.A
12 HWX320922029 Access Hatch PASRW020H109/ PASRW030H112/ PASRW040H117 P.O.A
13 HWX20041437 4 Way Valve PASRW020H109/ PASRW030H112/ PASRW040H117 $126.50
14 HWX20000140178 Filter ∅9.7 - ∅9.7 (∅19) PASRW020H109/ PASRW030H112 P.O.A
14 HWX20041444 Filter ∅9.7 - ∅9.7 (∅28) PASRW040H117 P.O.A
15 HWX30403000002 T Connector ∅9.52-2 x ∅6.35(T) x 1.0 PASRW020H109/ PASRW030H112/ PASRW040H117 P.O.A
16 HWX20000140570 Electronic Expansion Valve PASRW020H109/ PASRW030H112 P.O.A
16 HWX81000013 Electronic Expansion Valve PASRW040H117 P.O.A
17 HWX20001460 T-Connector ∅6.5-2 x ∅6.5(T) x 0.75 PASRW020H109/ PASRW030H112/ PASRW040H117 P.O.A
18 HWX83000012 Water Flow Detector PASRW020H109/ PASRW030H112/ PASRW040H117 $49.10
19 HWX20000360157 Low Pressure Switch NO 0.30MPa/0.15MPa PASRW020H109/ PASRW030H112/ PASRW040H117 $33.40
20 HWX20000140150 Pressure Tap 40mm 1/2” PASRW020H109/ PASRW030H112/ PASRW040H117 P.O.A
21 HWX20013605 High Pressure Switch NC 3.2MPa/4.4MPa PASRW020H109/ PASRW030H112/ PASRW040H117 $37.50
24 HWX80900055 Top Cover PASRW020H109/ PASRW030H112 P.O.A
24 HWX301090200806 Top Cover PASRW040H117 P.O.A
26 HWX80700218 Motor Bracket PASRW020H109/ PASRW030H112 P.O.A
26 HWX80700248 Motor Bracket PASRW040H117 P.O.A
27 HWX301060202502 Fin Coil N/A P.O.A
27 HWX80600042 Fin Coil PASRW020H109 P.O.A
27 HWX80600043 Fin Coil PASRW030H112 P.O.A
27 HWX80600044 Fin Coil PASRW040H117 P.O.A
29 HWX82500006 16A 50Hz 5mH Coil PASRW020H109/ PASRW030H112 $70.90
29 HWX82500005 20A50Hz 5.2mH Coil PASRW040H117 P.O.A
30 HWX80700452 Left Panel PASRW020H109/ PASRW030H112 P.O.A
30 HWX80700455 Left Panel PASRW040H117 P.O.A
31 HWX80200018 DC Ventilator Motor PASRW020H109/ PASRW030H112 $324.90
31 HWX20000330132 DC Ventilator Motor PASRW040H117 $519.80
32 HWX20000230596 HAYWARD Logo PASRW020H109/ PASRW030H112/ PASRW040H117 P.O.A
33 HWX82300052 Printed Circuit Board Driver PASRW020H109/ PASRW030H112 $1,066.30
33 HWX82300007 Printed Circuit Board Driver $1,290.90
34 HWX82600008 230V� ⁄12VDC Transformer PASRW020H109/ PASRW030H112/ PASRW040H117 $79.20
35 HWX40003901 Terminal Block L-N-GND -5 Connections 4mm 2 PASRW020H109/ PASRW030H112/ PASRW040H117 $12.50
36 HWX20000360297 K2 Relay PASRW020H109/ PASRW030H112/ PASRW040H117 $29.20
