EnergyLine Inverter Heat Pump

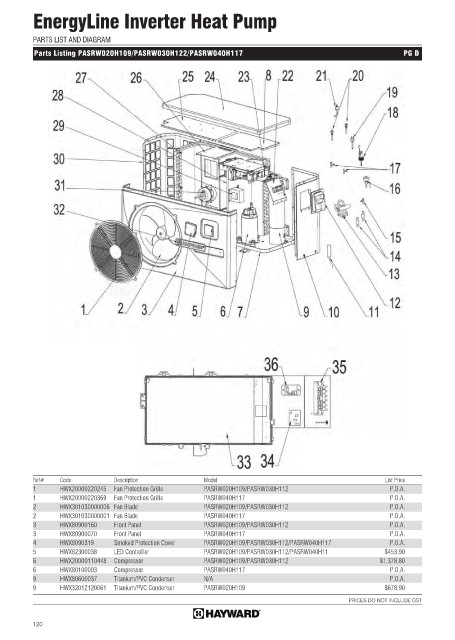

PARTS LIST AND DIAGRAM
Parts Listing PASRW020H109/PASRW030H122/PASRW040H117 PG D
Ref# Code Description Model List Price
1 HWX20000220245 Fan Protection Grille PASRW020H109/PASRW030H112 P.O.A.
1 HWX20000220369 Fan Protection Grille PASRW040H117 P.O.A.
2 HWX301030000006 Fan Blade PASRW020H109/PASRW030H112 P.O.A.
2 HWX301030000001 Fan Blade PASRW040H117 P.O.A.
3 HWX80900160 Front Panel PASRW020H109/PASRW030H112 P.O.A.
3 HWX80900070 Front Panel PASRW040H117 P.O.A.
4 HWX8090319 Smoked Protection Cover PASRW020H109/PASRW030H112/PASRW040H117 P.O.A.
5 HWX82300038 LED Controller PASRW020H109/PASRW030H112/PASRW040H11 $453.90
6 HWX20000110448 Compressor PASRW020H109/PASRW030H112 $1,378.80
6 HWX80100003 Compressor PASRW040H117 P.O.A.
9 HWX80600037 Titanium/PVC Condenser N/A P.O.A.
9 HWX32012120061 Titanium/PVC Condenser PASRW020H109 $678.90
PRICES DO NOT INCLUDE GST
