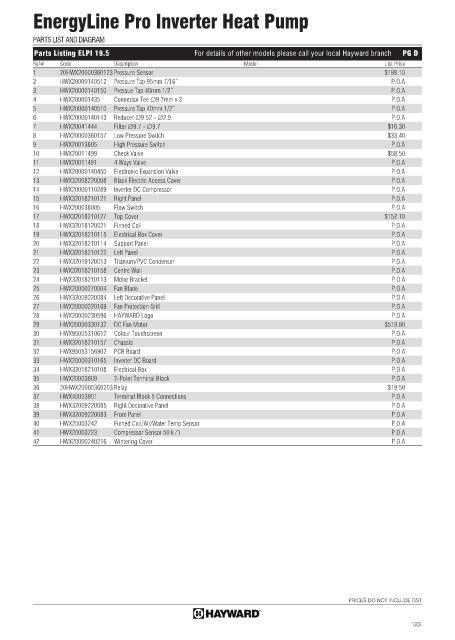

EnergyLine Pro Inverter Heat Pump

PARTS LIST AND DIAGRAM

Parts Listing ELPI 19.5 For details of other models please call your local Hayward branch PG D
Ref# Code Description Model List Price
1 20HWX20000360123 Pressure Sensor $198.10
2 HWX20000140512 Pressure Tap 95mm 7/16” P.O.A
3 HWX20000140150 Pressue Tap 40mm 1/2” P.O.A
4 HWX200001435 Connector Tee ∅9.7mm x 3 P.O.A
5 HWX20000140510 Pressure Tap 40mm 1/2” P.O.A
6 HWX20000140143 Reducer ∅9.52 - ∅2.9 P.O.A
7 HWX20041444 Filter ∅9.7 - ∅9.7 $16.30
8 HWX20000360157 Low Pressure Switch $33.40
9 HWX20013605 High Pressure Switch P.O.A
10 HWX20011499 Check Valve $58.50
11 HWX20011491 4 Ways Valve P.O.A
12 HWX20000140450 Electronic Expansion Valve P.O.A
13 HWX32008220008 Black Electric Access Cover P.O.A
14 HWX20000110289 Inverter DC Compressor P.O.A
15 HWX32018210121 Right Panel P.O.A
16 HWX200036005 Flow Switch P.O.A
17 HWX32018210127 Top Cover $152.10
18 HWX32018120021 Finned Coil P.O.A
19 HWX32018210115 Electrical Box Cover P.O.A
20 HWX32018210114 Support Panel P.O.A
21 HWX32018210122 Left Panel P.O.A
22 HWX32019120013 Titanium/PVC Condenser P.O.A
23 HWX32018210158 Centre Wall P.O.A
24 HWX32018210113 Motor Bracket P.O.A
25 HWX20000270004 Fan Blade P.O.A
26 HWX32009220084 Left Decorative Panel P.O.A
27 HWX20000220169 Fan Protection Grill P.O.A
28 HWX20000230596 HAYWARD Logo P.O.A
29 HWX20000330132 DC Fan Motor $519.80
30 HWX95005310612 Colour Touchscreen P.O.A
31 HWX32018210157 Chassis P.O.A
32 HWX95053156902 PCB Board P.O.A
33 HWX20000310165 Inverter DC Board P.O.A
34 HWX32018210108 Electrical Box P.O.A
35 HWX20003909 2-Point Terminal Block P.O.A
36 20HWX20000360203 Relay $19.50
37 HWX40003901 Terminal Block 5 Connections P.O.A
38 HWX32009220085 Right Decorative Panel P.O.A
39 HWX32009220083 Front Panel P.O.A
40 HWX20003242 Finned Coil/Air/Water Temp Sensor P.O.A
41 HWX20003223 Compressor Sensor 50 k ∩ P.O.A
42 HWX20000240216 Wintering Cover P.O.A
