OmniLogic & AquaRite +
®
PAST LIST & DIAGRAM

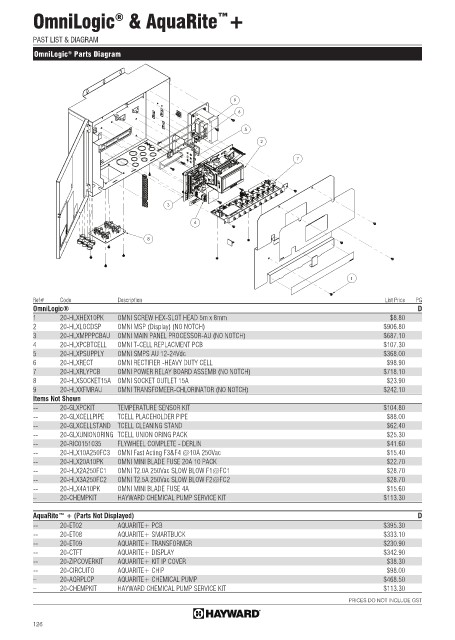

OmniLogic Parts Diagram
®

9
6
5
2

7

3

4

8

1

Ref# Code Description List Price PG
OmniLogic® D
1 20-HLXHEX10PK OMNI SCREW HEX-SLOT HEAD 5m x 8mm $8.80
2 20-HLXLOCDSP OMNI MSP (Display) (NO NOTCH) $906.80
3 20-HLXMPPPCBAU OMNI MAIN PANEL PROCESSOR-AU (NO NOTCH) $687.10
4 20-HLXPCBTCELL OMNI T-CELL REPLACMENT PCB $107.30
5 20-HLXPSUPPLY OMNI SMPS AU 12-24Vdc $368.00
6 20-HLXRECT OMNI RECTIFIER -HEAVY DUTY CELL $98.90
7 20-HLXRLYPCB OMNI POWER RELAY BOARD ASSEMB (NO NOTCH) $718.10
8 20-HLXSOCKET15A OMNI SOCKET OUTLET 15A $23.90
9 20-HLXXFMRAU OMNI TRANSFOMEER-CHLORINATOR (NO NOTCH) $242.10
Items Not Shown
-- 20-GLXPCKIT TEMPERATURE SENSOR KIT $104.80
-- 20-GLXCELLPIPE TCELL PLACEHOLDER PIPE $88.00
-- 20-GLXCELLSTAND TCELL CLEANING STAND $62.40
-- 20-GLXUNIONORING TCELL UNION ORING PACK $25.30
-- 20-RIC0151035 FLYWHEEL COMPLETE - DERLIN $41.60
-- 20-HLX10A250FC3 OMNI Fast Acting F3&F4 @10A 250Vac $15.40
-- 20-HLX20A10PK OMNI MINI BLADE FUSE 20A 10 PACK $22.70
-- 20-HLX2A250FC1 OMNI T2.0A 250Vac SLOW BLOW F1@FC1 $28.70
-- 20-HLX3A250FC2 OMNI T2.5A 250Vac SLOW BLOW F2@FC2 $28.70
-- 20-HLX4A10PK OMNI MINI BLADE FUSE 4A $15.60
– 20-CHEMPKIT HAYWARD CHEMICAL PUMP SERVICE KIT $113.30

AquaRite™ + (Parts Not Displayed) D
-- 20-ET02 AQUARITE+ PCB $395.30
-- 20-ET08 AQUARITE+ SMARTBUCK $333.10
-- 20-ET09 AQUARITE+ TRANSFORMER $230.90
-- 20-CTFT AQUARITE+ DISPLAY $342.90
-- 20-ZIPCOVERKIT AQUARITE+ KIT IP COVER $38.30
-- 20-CIRCUITO AQUARITE+ CHIP $98.00
– 20-AQRPLCP AQUARITE+ CHEMICAL PUMP $468.50
– 20-CHEMPKIT HAYWARD CHEMICAL PUMP SERVICE KIT $113.30
