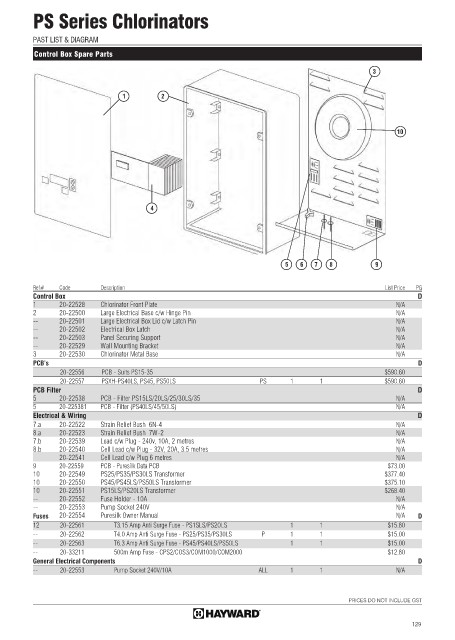

PS Series Chlorinators

PAST LIST & DIAGRAM

Control Box Spare Parts

3

1 2

10

4

5 6 7 8 9

Ref# Code Description List Price PG
Control Box D
1 20-22528 Chlorinator Front Plate N/A
2 20-22500 Large Electrical Base c/w Hinge Pin N/A
-- 20-22501 Large Electrical Box Lid c/w Latch Pin N/A
-- 20-22502 Electrical Box Latch N/A
-- 20-22503 Panel Securing Support N/A
-- 20-22529 Wall Mounting Bracket N/A
3 20-22530 Chlorinator Metal Base N/A
PCB’s D
20-22556 PCB - Suits PS15-35 $590.60
20-22557 PSXH-PS40LS, PS45, PS50LS PS 1 1 $590.60
PCB Filter D
5 20-22538 PCB - Filter PS15LS/20LS/25/30LS/35 N/A
5 20-225381 PCB - Filter (PS40LS/45/50LS) N/A
Electrical & Wiring D
7.a 20-22522 Strain Relief Bush 6N-4 N/A
8.a 20-22523 Strain Relief Bush 7W-2 N/A
7.b 20-22539 Lead c/w Plug - 240v, 10A, 2 metres N/A
8.b 20-22540 Cell Lead c/w Plug - 32V, 20A, 3.5 metres N/A
20-22541 Cell Lead c/w Plug 6 metres N/A
9 20-22559 PCB - Puresilk Data PCB $73.00
10 20-22549 PS25/PS35/PS30LS Transformer $377.40
10 20-22550 PS45/PS45LS/PS50LS Transformer $375.10
10 20-22551 PS15LS/PS20LS Transformer $268.40
-- 20-22552 Fuse Holder - 10A N/A
-- 20-22553 Pump Socket 240V N/A
-- Fuses 20-22554 Puresilk Owner Manual N/A D
12 20-22561 T3.15 Amp Anti Surge Fuse - PS1SLS/PS2OLS 1 1 $15.80
-- 20-22562 T4.0 Amp Anti Surge Fuse - PS25/PS35/PS30LS P 1 1 $15.00
-- 20-22563 T6.3 Amp Anti Surge Fuse - PS45/PS40LS/PS50LS 1 1 $15.00
-- 20-33211 500m Amp Fuse - CPS2/COS3/COM1000/COM2000 $12.80
General Electrical Components D
-- 20-22553 Pump Socket 240V/10A ALL 1 1 N/A
