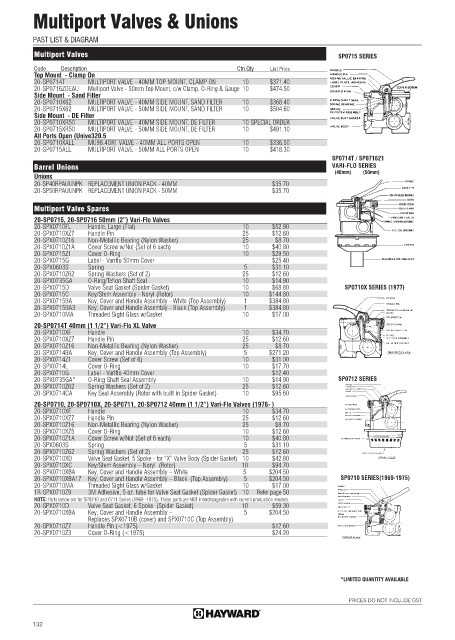

Multiport Valves & Unions

PAST LIST & DIAGRAM

Multiport Valves SP0715 SERIES
Code Description Ctn.Qty List Price
Top Mount - Clamp On
20-SP0714T MULTIPORT VALVE - 40MM TOP MOUNT, CLAMP ON 10 $371.40
20-SP0716ZOEAU Multiport Valve - 50mm Top Mount, c/w Clamp, O-Ring & Gauge 10 $474.50
Side Mount - Sand Filter
20-SP0710X62 MULTIPORT VALVE - 40MM SIDE MOUNT, SAND FILTER 10 $368.40
20-SP0715X62 MULTIPORT VALVE - 50MM SIDE MOUNT, SAND FILTER 10 $504.60
Side Mount - DE Filter
20-SP0710XR50 MULTIPORT VALVE - 40MM SIDE MOUNT, DE FILTER 10 SPECIAL ORDER
20-SP0715XR50 MULTIPORT VALVE - 50MM SIDE MOUNT, DE FILTER 10 $491.10
All Ports Open (Unive320.5
20-SP0710XALL MU98.4ORT VALVE - 40MM ALL PORTS OPEN 10 $336.50
20-SP0715ALL MULTIPORT VALVE - 50MM ALL PORTS OPEN 10 $418.30
SP0714T / SP071621
Barrel Unions VARI-FLO SERIES
Unions (40mm) (50mm)
20-SP40RPAUUNPK REPLACEMENT UNION PACK - 40MM $35.70
20-SP50RPAUUNPK REPLACEMENT UNION PACK - 50MM $35.70

Multiport Valve Spares
20-SP0715, 20-SP0716 50mm (2”) Vari-Flo Valves
20-SPX0710FL Handle, Large (Flat) 10 $52.90
20-SPX0710XZ7 Handle Pin 25 $12.60
20-SPX0710Z16 Non-Metallic Bearing (Nylon Washer) 25 $8.70
20-SPX0710Z1A Cover Screw w/Nut (Set of 6 each) 10 $40.80
20-SPX0715Z1 Cover O-Ring 10 $29.50
20-SPX0715G Label - Variflo 50mm Cover $25.40
20-SPX0603S Spring 5 $31.10
20-SPX0710Z62 Spring Washers (Set of 2) 25 $12.60
20-SPX0735GA O-Ring/Teflon Shaft Seal 10 $14.90
20-SPX0715D Valve Seat Gasket (Spider Gasket) 10 $68.80 SP0710X SERIES (1977)
20-SPX0715C Key/Stem Assembly - Noryl (Rotor) 10 $144.80
20-SPX0715BA Key, Cover and Handle Assembly - White (Top Assembly) 1 $384.80
20-SPX0715BA3 Key, Cover and Handle Assembly - Black (Top Assembly) 1 $384.80
20-SPX0710MA Threaded Sight Glass w/Gasket 10 $17.00
20-SP0714T 40mm (1 1/2”) Vari-Flo XL Valve
20-SPX0710XF Handle 10 $34.70
20-SPX0710XZ7 Handle Pin 25 $12.60
20-SPX0710Z16 Non-Metallic Bearing (Nylon Washer) 25 $8.70
20-SPX0714BA Key, Cover and Handle Assembly (Top Assembly) 5 $271.20
20-SPX0714Z1 Cover Screw (Set of 6) 10 $31.00
20-SPX0714L Cover O-Ring 10 $17.70
20-SPX0710G Label - Variflo 40mm Cover $12.40
20-SPX0735GA* O-Ring Shaft Seal Assembly 10 $14.90 SP0712 SERIES
20-SPX0710Z62 Spring Washers (Set of 2) 25 $12.60
20-SPX0714CA Key Seal Assembly (Rotor with built in Spider Gasket) 10 $95.60
20-SP0710, 20-SP0710X, 20-SP0711, 20-SP0712 40mm (1 1/2”) Vari-Flo Valves (1976- )
20-SPX0710XF Handle 10 $34.70
20-SPX0710XZ7 Handle Pin 25 $12.60
20-SPX0710Z16 Non-Metallic Bearing (Nylon Washer) 25 $8.70
20-SPX0710XZ5 Cover O-Ring 10 $12.60
20-SPX0710Z1A Cover Screw w/Nut (Set of 6 each) 10 $40.80
20-SPX0603S Spring 5 $31.10
20-SPX0710Z62 Spring Washers (Set of 2) 25 $12.60
20-SPX0710XD Valve Seat Gasket, 5 Spoke - for “X” Valve Body (Spider Gasket) 10 $42.80
20-SPX0710XC Key/Stem Assembly – Noryl (Rotor) 10 $94.70
20-SPX0710XBA Key, Cover and Handle Assembly – White 5 $204.50
20-SPX0710XBA17 Key, Cover and Handle Assembly – Black (Top Assembly) 5 $204.50 SP0710 SERIES(1969-1975)
20-SPX0710MA Threaded Sight Glass w/Gasket 10 $17.00
1R-SPX0710Z9 3M Adhesive, 5 oz. tube for Valve Seat Gasket (Spider Gasket) 10 Refer page 50
NOTE: Parts below are for SP0710 and 0711 Series (1969 -1975). These parts are NOT interchangeable with current production models.
20-SPX0710D Valve Seat Gasket, 6 Spoke (Spider Gasket) 10 $59.30
20-SPX0710XBA Key, Cover and Handle Assembly – 5 $204.50
Replaces SPX0710B (cover) and SPX0710C (Top Assembly)
20-SPX0710Z7 Handle Pin (<1975) $12.60
20-SPX0710Z3 Cover O-Ring (<1975) $24.20

*LIMITED QUANTITY AVAILABLE

PRICES DO NOT INCLUDE GST

132
