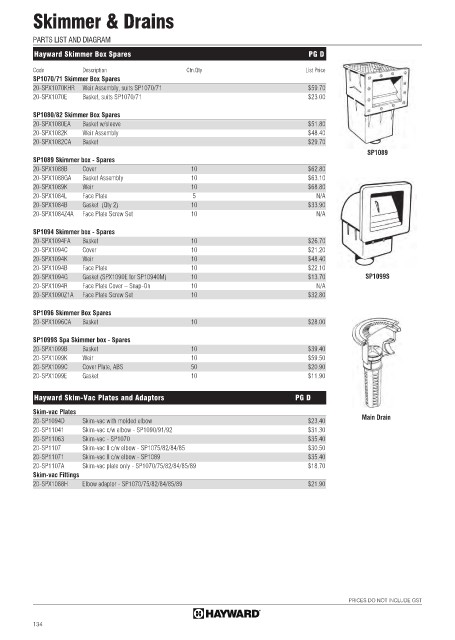

Page 138 - 2021 Hayward Buyers Guide

Skimmer & Drains

PARTS LIST AND DIAGRAM

Hayward Skimmer Box Spares PG D
Code Description Ctn.Qty List Price
SP1070/71 Skimmer Box Spares
20-SPX1070KHR Weir Assembly, suits SP1070/71 $59.70
20-SPX1070E Basket, suits SP1070/71 $23.00

SP1080/82 Skimmer Box Spares
20-SPX1080EA Basket w/sleeve $51.80
20-SPX1082K Weir Assembly $48.40
20-SPX1082CA Basket $29.70
SP1089
SP1089 Skimmer box - Spares
20-SPX1088B Cover 10 $62.80
20-SPX1088GA Basket Assembly 10 $63.10
20-SPX1089K Weir 10 $68.80
20-SPX1084L Face Plate 5 N/A
20-SPX1084B Gasket (Qty 2) 10 $33.90
20-SPX1084Z4A Face Plate Screw Set 10 N/A

SP1094 Skimmer box - Spares
20-SPX1094FA Basket 10 $26.70
20-SPX1094C Cover 10 $21.20
20-SPX1094K Weir 10 $48.40
20-SPX1094B Face Plate 10 $22.10
20-SPX1094G Gasket (SPX1090E for SP10940M) 10 $13.70 SP1099S
20-SPX1094R Face Plate Cover – Snap-On 10 N/A
20-SPX1090Z1A Face Plate Screw Set 10 $32.80

SP1096 Skimmer Box Spares
20-SPX1096CA Basket 10 $28.00

SP1099S Spa Skimmer box - Spares
20-SPX1099B Basket 10 $39.40
20-SPX1099K Weir 10 $59.50
20-SPX1099C Cover Plate, ABS 50 $20.90
20-SPX1099E Gasket 10 $11.90

Hayward Skim-Vac Plates and Adaptors PG D
Skim-vac Plates
20-SP1094D Skim-vac with molded elbow $23.40 Main Drain
20-SP11041 Skim-vac c/w elbow - SP1090/91/92 $31.30
20-SP11063 Skim-vac - SP1070 $35.40
20-SP1107 Skim-vac II c/w elbow - SP1075/82/84/85 $30.50
20-SP11071 Skim-vac II c/w elbow - SP1089 $35.40
20-SP1107A Skim-vac plate only - SP1070/75/82/84/85/89 $18.70
Skim-vac Fittings
20-SPX1088H Elbow adaptor - SP1070/75/82/84/85/89 $21.90

PRICES DO NOT INCLUDE GST
