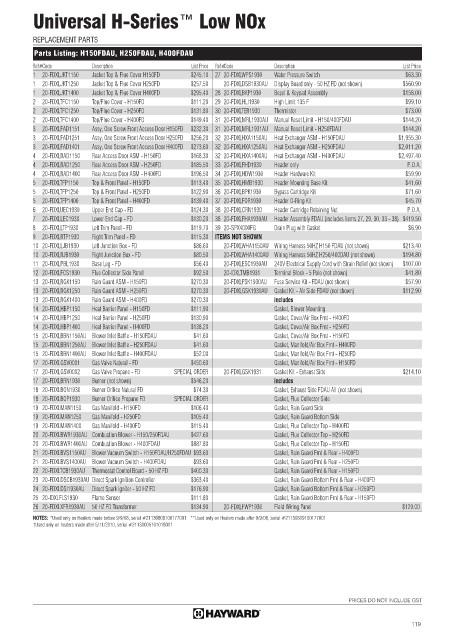

Universal H-Series™ Low NOx

REPLACEMENT PARTS

Parts Listing: H150FDAU, H250FDAU, H400FDAU
Ref#Code Description List Price Ref#Code Description List Price
1 20-FDXLJKT1150 Jacket Top & Flue Cover H150FD $245.10 27 20-FDXLWPS1930 Water Pressure Switch $63.30
1 20-FDXLJKT1250 Jacket Top & Flue Cover H250FD $257.50 20-FDXLDSB1930AU Display Board only - 50 HZ FD (not shown) $560.90
1 20-FDXLJKT1400 Jacket Top & Flue Cover H400FD $295.40 28 20-FDXLBKP1930 Bezel & Keypad Assembly $158.00
2 20-FDXLTFC1150 Top/Flue Cover - H150FD $111.20 29 20-FDXLHLI1930 High Limit 135 F $99.10
2 20-FDXLTFC1250 Top/Flue Cover - H250FD $131.80 30 20-FDXLTER1930 Thermistor $73.00
2 20-FDXLTFC1400 Top/Flue Cover - H400FD $149.40 31 20-FDXLMRL1930AU Manual Reset Limit - H150/400FDAU $144.20
3 20-FDXLFAD1151 Assy, One Screw Front Access Door H150FD $232.30 31 20-FDXLMRL1931AU Manual Reset Limit - H250FDAU $144.20
3 20-FDXLFAD1251 Assy, One Screw Front Access Door H250FD $256.20 32 20-FDXLHXA1150AU Heat Exchanger ASM - H150FDAU $1,955.30
3 20-FDXLFAD1401 Assy, One Screw Front Access Door H400FD $273.60 32 20-FDXLHXA1250AU Heat Exchanger ASM - H250FDAU $2,011.20
4 20-FDXLRAD1150 Rear Access Door ASM - H150FD $168.30 32 20-FDXLHXA1400AU Heat Exchanger ASM - H400FDAU $2,497.40
4 20-FDXLRAD1250 Rear Access Door ASM - H250FD $185.50 33 20-FDXLFHD1930 Header only P.O.A.
4 20-FDXLRAD1400 Rear Access Door ASM - H400FD $196.50 34 20-FDXLHDW1930 Header Hardware Kit $59.90
5 20-FDXLTFP1150 Top & Front Panel - H150FD $113.40 35 20-FDXLHMB1930 Header Mounting Base Kit $41.60
5 20-FDXLTFP1250 Top & Front Panel - H250FD $122.90 36 20-FDXLBPK1930 Bypass Cartridge Kit $71.60
5 20-FDXLTFP1400 Top & Front Panel - H400FD $139.40 37 20-FDXLFOR1930 Header O-Ring Kit $45.70
6 20-FDXLUEC1930 Upper End Cap - FD $124.30 38 20-FDXLCRN1930 Header Cartridge Retaining Nut P.O.A.
7 20-FDXLLEC1930 Lower End Cap - FD $130.20 38 20-FDXLFHA1930AU Header Assembly FDAU (includes items 27, 29, 30, 33 - 38) $419.50
8 20-FDXLLTP1930 Left Trim Panel - FD $119.70 39 20-SPX4000FG Drain Plug with Gasket $6.90
9 20-FDXLRTP1930 Right Trim Panel - FD $115.30 ITEMS NOT SHOWN
10 20-FDXLLJB1930 Left Junction Box - FD $86.60 20-FDXLWHA1150AU Wiring Harness 50HZ H150 FDAU (not shown) $213.40
10 20-FDXLRJB1930 Right Junction Box - FD $80.50 20-FDXLWHA1400AU Wiring Harness 50HZ H250/400DAU (not shown) $194.80
11 20-FDXLPBL1930 Base Leg - FD $56.40 20-FDXLESC1930AU 240V Electrical Supply Cord with Strain Relief (not shown) $107.00
12 20-FDXLFCS1930 Flue Collector Side Panel $92.50 20-IDXLTMB1931 Terminal Block - 5 Pole (not shown) $41.80
13 20-FDXLRGK1150 Rain Guard ASM - H150FD $270.30 20-FDXLFSK1930AU Fuse Service Kit - FDAU (not shown) $57.90
13 20-FDXLRGK1250 Rain Guard ASM - H250FD $270.30 20-FDXLGSK1930AU Gasket Kit - Air Side FDAU (not shown) $112.90
13 20-FDXLRGK1400 Rain Guard ASM - H400FD $270.30 includes
14 20-FDXLHBP1150 Heat Barrier Panel - H150FD $111.90 Gasket, Blower Mounting
14 20-FDXLHBP1250 Heat Barrier Panel - H250FD $130.90 Gasket, Cover/Air Box Frnt - H400FD
14 20-FDXLHBP1400 Heat Barrier Panel - H400FD $138.20 Gasket, Cover/Air Box Frnt - H250FD
15 20-FDXLBBN1150AU Blower Inlet Baffle - H150FDAU $41.60 Gasket, Cover/Air Box Frnt - H150FD
15 20-FDXLBBN1250AU Blower Inlet Baffle - H250FDAU $41.60 Gasket, Manifold/Air Box Frnt - H400FD
15 20-FDXLBBN1400AU Blower Inlet Baffle - H400FDAU $52.00 Gasket, Manifold/Air Box Frnt - H250FD
17 20-FDXLGSV0001 Gas Valve Natural - FD $450.60 Gasket, Manifold/Air Box Frnt - H150FD
17 20-FDXLGSV0002 Gas Valve Propane - FD SPECIAL ORDER 20-FDXLGSK1931 Gasket Kit - Exhaust Side $214.10
17 20-FDXLBRN1930 Burner (not shown) $546.20 includes
18 20-FDXLBON1930 Burner Orifice Natural FD $74.30 Gasket, Exhaust Side FDAU All (not shown)
18 20-FDXLBOP1930 Burner Orifice Propane FD SPECIAL ORDER Gasket, Flue Collector Side
19 20-FDXLMAN1150 Gas Manifold - H150FD $106.40 Gasket, Rain Guard Side
19 20-FDXLMAN1250 Gas Manifold - H250FD $105.40 Gasket, Rain Guard Bottom Side
19 20-FDXLMAN1400 Gas Manifold - H400FD $115.40 Gasket, Flue Collector Top - H400FD
20 20-FDXLBWR1930AU Combustion Blower - H150/250FDAU $427.60 Gasket, Flue Collector Top - H250FD
20 20-FDXLBWR1400AU Combustion Blower - H400FDAU $887.80 Gasket, Flue Collector Top - H150FD
21 20-FDXLBVS1150AU Blower Vacuum Switch - H150FDAU/H250FDAU $93.60 Gasket, Rain Guard Frnt & Rear - H400FD
21 20-FDXLBVS1400AU Blower Vacuum Switch - H400FDAU $93.60 Gasket, Rain Guard Frnt & Rear - H250FD
22 20-FDXLTCB1930AU Thermostat Control Board - 50 HZ FD $400.30 Gasket, Rain Guard Frnt & Rear - H150FD
23 20-FDXLDSCB1930AU Direct Spark Ignition Controller $363.40 Gasket, Rain Guard Bottom Frnt & Rear - H400FD
24 20-FDXLDSI1930AU Direct Spark Igniter - 50 HZ FD $176.90 Gasket, Rain Guard Bottom Frnt & Rear - H250FD
25 20-IDXLFLS1930 Flame Sensor $111.80 Gasket, Rain Guard Bottom Frnt & Rear - H150FD
26 20-FDXLXFR1930AU 50 HZ FD Transformer $134.90 20-FDXLFWP1930 Field Wiring Panel $129.00
NOTES: *Used only on Heaters made before 9/9/08, serial #21130809100177001 **Used only on Heaters made after 9/9/08, serial #21130809100177001
†Used only on heaters made after 5/11/2010, serial #21130005101018001

PRICES DO NOT INCLUDE GST
