Swimclear™

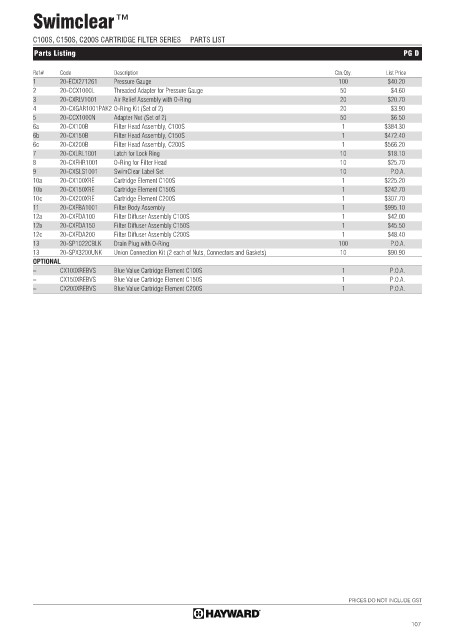

C100S, C150S, C200S CARTRIDGE FILTER SERIES PARTS LIST

Parts Listing PG D

Ref# Code Description Ctn.Qty. List Price
1 20-ECX271261 Pressure Gauge 100 $40.20
2 20-CCX1000L Threaded Adapter for Pressure Gauge 50 $4.60
3 20-CXRLV1001 Air Relief Assembly with O-Ring 20 $20.70
4 20-CXGAR1001PAK2 O-Ring Kit (Set of 2) 20 $3.90
5 20-CCX1000N Adapter Nut (Set of 2) 50 $6.50
6a 20-CX100B Filter Head Assembly, C100S 1 $384.30
6b 20-CX150B Filter Head Assembly, C150S 1 $472.40
6c 20-CX200B Filter Head Assembly, C200S 1 $566.20
7 20-CXLRL1001 Latch for Lock Ring 10 $18.10
8 20-CXFHR1001 O-Ring for Filter Head 10 $25.70
9 20-CXSLS1001 SwimClear Label Set 10 P.O.A.
10a 20-CX100XRE Cartridge Element C100S 1 $225.20
10b 20-CX150XRE Cartridge Element C150S 1 $242.70
10c 20-CX200XRE Cartridge Element C200S 1 $307.70
11 20-CXFBA1001 Filter Body Assembly 1 $995.10
12a 20-CXFDA100 Filter Diffuser Assembly C100S 1 $42.00
12b 20-CXFDA150 Filter Diffuser Assembly C150S 1 $45.50
12c 20-CXFDA200 Filter Diffuser Assembly C200S 1 $48.40
13 20-SP1022CBLK Drain Plug with O-Ring 100 P.O.A.
13 20-SPX3200UNK Union Connection Kit (2 each of Nuts, Connectors and Gaskets) 10 $90.90
OPTIONAL
– CX100XREBVS Blue Value Cartridge Element C100S 1 P.O.A.
– CX150XREBVS Blue Value Cartridge Element C150S 1 P.O.A.
– CX200XREBVS Blue Value Cartridge Element C200S 1 P.O.A.

PRICES DO NOT INCLUDE GST

107
