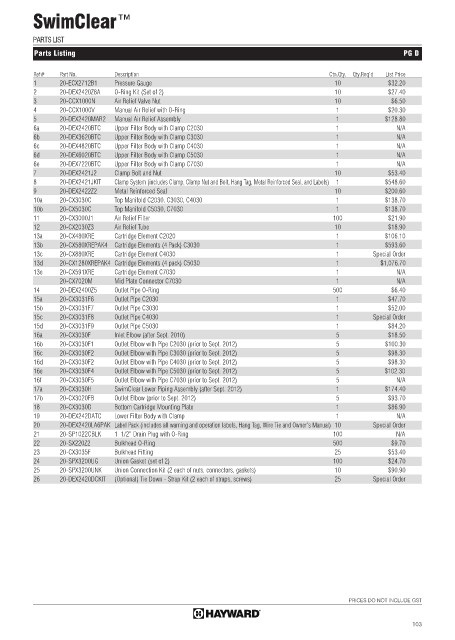

SwimClear™

PARTS LIST

Parts Listing PG D

Ref# Part No. Description Ctn.Qty. Qty.Req’d List Price
1 20-ECX2712B1 Pressure Gauge 10 $32.20
2 20-DEX2420Z8A O-Ring Kit (Set of 2) 10 $27.40
3 20-CCX1000N Air Relief Valve Nut 10 $6.50
4 20-CCX1000V Manual Air Relief with O-Ring 1 $20.30
5 20-DEX2420MAR2 Manual Air Relief Assembly 1 $128.80
6a 20-DEX2420BTC Upper Filter Body with Clamp C2030 1 N/A
6b 20-DEX3620BTC Upper Filter Body with Clamp C3030 1 N/A
6c 20-DEX4820BTC Upper Filter Body with Clamp C4030 1 N/A
6d 20-DEX6020BTC Upper Filter Body with Clamp C5030 1 N/A
6e 20-DEX7220BTC Upper Filter Body with Clamp C7030 1 N/A
7 20-DEX2421J2 Clamp Bolt and Nut 10 $53.40
8 20-DEX2421JKIT Clamp System (includes Clamp, Clamp Nut and Bolt, Hang Tag, Metal Reinforced Seal, and Labels) 1 $548.60
9 20-DEX2422Z2 Metal Reinforced Seal 10 $200.60
10a 20-CX3030C Top Manifold C2030. C3030, C4030 1 $138.70
10b 20-CX5030C Top Manifold C5030, C7030 1 $138.70
11 20-CX3000J1 Air Relief Filter 100 $21.90
12 20-CX2030Z3 Air Relief Tube 10 $18.90
13a 20-CX480XRE Cartridge Element C2020 1 $106.10
13b 20-CX580XREPAK4 Cartridge Elements (4 Pack) C3030 1 $593.60
13c 20-CX880XRE Cartridge Element C4030 1 Special Order
13d 20-CX1280XREPAK4 Cartridge Elements (4 pack) C5030 1 $1,076.70
13e 20-CX591XRE Cartridge Element C7030 1 N/A
20-CX7020M Mid Plate Connector C7030 1 N/A
14 20-DEX2400Z5 Outlet Pipe O-Ring 500 $6.40
15a 20-CX3031F6 Outlet Pipe C2030 1 $47.70
15b 20-CX3031F7 Outlet Pipe C3030 1 $52.00
15c 20-CX3031F8 Outlet Pipe C4030 1 Special Order
15d 20-CX3031F9 Outlet Pipe C5030 1 $84.20
16a 20-CX3030F Inlet Elbow (after Sept. 2010) 5 $18.50
16b 20-CX3030F1 Outlet Elbow with Pipe C2030 (prior to Sept. 2012) 5 $100.30
16c 20-CX3030F2 Outlet Elbow with Pipe C3030 (prior to Sept. 2012) 5 $98.30
16d 20-CX3030F2 Outlet Elbow with Pipe C4030 (prior to Sept. 2012) 5 $98.30
16e 20-CX3030F4 Outlet Elbow with Pipe C5030 (prior to Sept. 2012) 5 $102.30
16f 20-CX3030F5 Outlet Elbow with Pipe C7030 (prior to Sept. 2012) 5 N/A
17a 20-CX3030H SwimClear Lower Piping Assembly (after Sept. 2012) 1 $174.40
17b 20-CX3020FB Outlet Elbow (prior to Sept. 2012) 5 $93.70
18 20-CX3030D Bottom Cartridge Mounting Plate 1 $86.90
19 20-DEX242DATC Lower Filter Body with Clamp 1 N/A
20 20-DEX2420LA6PAK Label Pack (includes all warning and operation labels, Hang Tag, Wire Tie and Owner’s Manual) 10 Special Order
21 20-SP1022CBLK 1 1/2” Drain Plug with O-Ring 100 N/A
22 20-SX220Z2 Bulkhead O-Ring 500 $9.70
23 20-CX3035F Bulkhead Fitting 25 $53.40
24 20-SPX3200UG Union Gasket (set of 2) 100 $24.70
25 20-SPX3200UNK Union Connection Kit (2 each of nuts, connectors, gaskets) 10 $90.90
26 20-DEX2420DCKIT (Optional) Tie Down - Strap Kit (2 each of straps, screws) 25 Special Order

PRICES DO NOT INCLUDE GST
