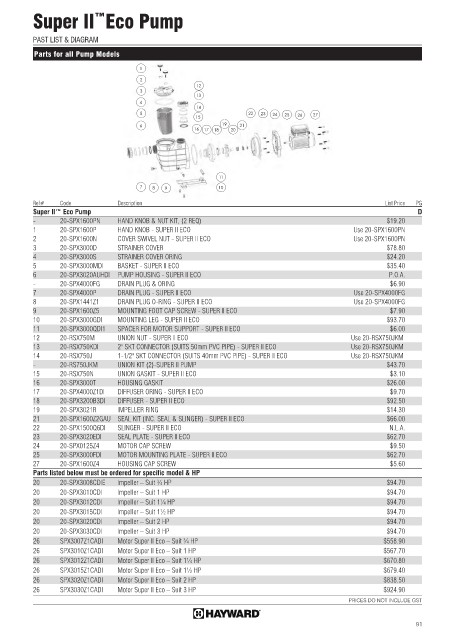

Page 95 - 2021 Hayward Buyers Guide

™
Super II Eco Pump

PAST LIST & DIAGRAM

Parts for all Pump Models
1
2
12
3
13
4
14
5 22 23 24 25 27
15 26
6 19 21
16 17 18 20

11
7 8 9 10

Ref# Code Description List Price PG
Super II™ Eco Pump D
- 20-SPX1600PN HAND KNOB & NUT KIT, (2 REQ) $19.20
1 20-SPX1600P HAND KNOB - SUPER II ECO Use 20-SPX1600PN
2 20-SPX1600N COVER SWIVEL NUT - SUPER II ECO Use 20-SPX1600PN
3 20-SPX3000D STRAINER COVER $78.80
4 20-SPX3000S STRAINER COVER ORING $24.20
5 20-SPX3000MDI BASKET - SUPER II ECO $35.40
6 20-SPX3020AUHDI PUMP HOUSING - SUPER II ECO P.O.A.
- 20-SPX4000FG DRAIN PLUG & ORING $6.90
7 20-SPX4000P DRAIN PLUG - SUPER II ECO Use 20-SPX4000FG
8 20-SPX1441Z1 DRAIN PLUG O-RING - SUPER II ECO Use 20-SPX4000FG
9 20-SPX1600Z5 MOUNTING FOOT CAP SCREW - SUPER II ECO $7.90
10 20-SPX3000GDI MOUNTING LEG - SUPER II ECO $93.70
11 20-SPX3000QDI1 SPACER FOR MOTOR SUPPORT - SUPER II ECO $6.00
12 20-RSX750M UNION NUT - SUPER II ECO Use 20-RSX750JKM
13 20-RSX750KDI 2" SKT CONNECTOR (SUITS 50mm PVC PIPE) - SUPER II ECO Use 20-RSX750JKM
14 20-RSX750J 1-1/2" SKT CONNECTOR (SUITS 40mm PVC PIPE) - SUPER II ECO Use 20-RSX750JKM
- 20-RS750JKM UNION KIT (2)-SUPER II PUMP $43.70
15 20-RSX750N UNION GASKIT - SUPER II ECO $3.10
16 20-SPX3000T HOUSING GASKIT $26.00
17 20-SPX4000Z1DI DIFFUSER ORING - SUPER II ECO $9.70
18 20-SPX3200B3DI DIFFUSER - SUPER II ECO $92.50
19 20-SPX3021R IMPELLER RING $14.30
21 20-SPX1600Z2GAU SEAL KIT (INC. SEAL & SLINGER) - SUPER II ECO $66.00
22 20-SPX1500Q6DI SLINGER - SUPER II ECO N.L.A.
23 20-SPX3020EDI SEAL PLATE - SUPER II ECO $62.70
24 20-SPX0125Z4 MOTOR CAP SCREW $9.50
25 20-SPX3000FDI MOTOR MOUNTING PLATE - SUPER II ECO $62.70
27 20-SPX1600Z4 HOUSING CAP SCREW $5.60
Parts listed below must be ordered for specific model & HP
20 20-SPX3008CDIE Impeller – Suit ¾ HP $94.70
20 20-SPX3010CDI Impeller – Suit 1 HP $94.70
20 20-SPX3012CDI Impeller – Suit 1¼ HP $94.70
20 20-SPX3015CDI Impeller – Suit 1½ HP $94.70
20 20-SPX3020CDI Impeller – Suit 2 HP $94.70
20 20-SPX3030CDI Impeller – Suit 3 HP $94.70
26 SPX3007Z1CADI Motor Super II Eco – Suit ¾ HP $558.90
26 SPX3010Z1CADI Motor Super II Eco – Suit 1 HP $567.70
26 SPX3012Z1CADI Motor Super II Eco – Suit 1¼ HP $670.80
26 SPX3015Z1CADI Motor Super II Eco – Suit 1½ HP $679.40
26 SPX3020Z1CADI Motor Super II Eco – Suit 2 HP $838.50
26 SPX3030Z1CADI Motor Super II Eco – Suit 3 HP $924.90
PRICES DO NOT INCLUDE GST
