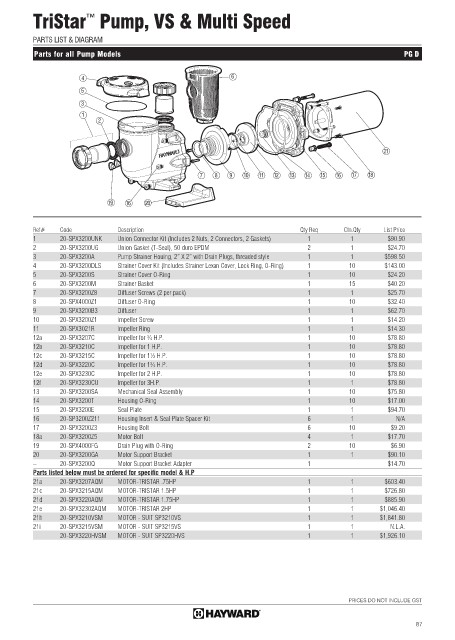

TriStar Pump, VS & Multi Speed

PARTS LIST & DIAGRAM

Parts for all Pump Models PG D

4 6
5
3
1
2

21

7 8 9 10 11 12 13 14 15 16 17 18

19 16 20

Ref# Code Description Qty Req Ctn.Qty List Price
1 20-SPX3200UNK Union Connector Kit (Includes 2 Nuts, 2 Connectors, 2 Gaskets) 1 1 $90.90
2 20-SPX3200UG Union Gasket (T-Seal), 50 duro EPDM 2 1 $24.70
3 20-SPX3200A Pump Strainer Houing, 2” X 2” with Drain Plugs, threaded style 1 1 $598.50
4 20-SPX3200DLS Strainer Cover Kit (Includes Strainer Lexan Cover, Lock Ring, O-Ring) 1 10 $143.00
5 20-SPX3200S Strainer Cover O-Ring 1 10 $24.20
6 20-SPX3200M Strainer Basket 1 15 $40.20
7 20-SPX3200Z8 Diffuser Screws (2 per pack) 1 1 $25.70
8 20-SPX4000Z1 Diffuser O-Ring 1 10 $32.40
9 20-SPX3200B3 Diffuser 1 1 $62.70
10 20-SPX3200Z1 Impeller Screw 1 1 $14.20
11 20-SPX3021R Impeller Ring 1 1 $14.30
12a 20-SPX3207C Impeller for ¾ H.P. 1 10 $78.80
12b 20-SPX3210C Impeller for 1 H.P. 1 10 $78.80
12c 20-SPX3215C Impeller for 1½ H.P. 1 10 $78.80
12d 20-SPX3220C Impeller for 1¾ H.P. 1 10 $78.80
12e 20-SPX3230C Impeller for 2 H.P. 1 10 $78.80
12f 20-SPX3230CU Impeller for 3H.P. 1 1 $78.80
13 20-SPX3200SA Mechanical Seal Assembly 1 10 $75.80
14 20-SPX3200T Housing O-Ring 1 10 $17.00
15 20-SPX3200E Seal Plate 1 1 $94.70
16 20-SP3200Z211 Housing Insert & Seal Plate Spacer Kit 6 1 N/A
17 20-SPX3200Z3 Housing Bolt 6 10 $9.20
18a 20-SPX3200Z5 Motor Bolt 4 1 $17.70
19 20-SPX4000FG Drain Plug with O-Ring 2 10 $6.90
20 20-SPX3200GA Motor Support Bracket 1 1 $90.10
– 20-SPX3200Q Motor Support Bracket Adapter 1 $14.70
Parts listed below must be ordered for specific model & H.P
21a 20-SPX3207AQM MOTOR-TRISTAR .75HP 1 1 $603.40
21c 20-SPX3215AQM MOTOR-TRISTAR 1.5HP 1 1 $726.80
21d 20-SPX3220AQM MOTOR-TRISTAR 1.75HP 1 1 $885.90
21e 20-SPX32302AQM MOTOR-TRISTAR 2HP 1 1 $1,046.40
21h 20-SPX3210VSM MOTOR - SUIT SP3210VS 1 1 $1,841.80
21i 20-SPX3215VSM MOTOR - SUIT SP3215VS 1 1 N.L.A.
20-SPX3220HVSM MOTOR - SUIT SP3220HVS 1 1 $1,926.10
