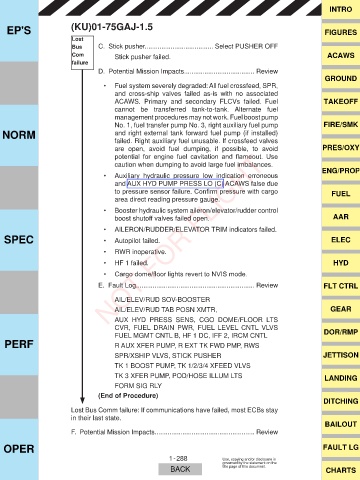

Page 328 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES
Lost
Bus C. Stick pusher..................................... Select PUSHER OFF
Com Stick pusher failed. ACAWS
failure
D. Potential Mission Impacts...................................... Review
GROUND
‡ Fuel system severely degraded: All fuel crossfeed, SPR,
and cross-ship valves failed as-is with no associated
ACAWS. Primary and secondary FLCVs failed. Fuel TAKEOFF
cannot be transferred tank-to-tank. Alternate fuel
management procedures may not work. Fuel boost pump
No. 1, fuel transfer pump No. 3, right auxiliary fuel pump FIRE/SMK
NORM and right external tank forward fuel pump (if installed)
failed. Right auxiliary fuel unusable. If crossfeed valves
are open, avoid fuel dumping, if possible, to avoid PRES/OXY
SRWHQWLDO IRU HQJLQH IXHO FDYLWDWLRQ DQG ÀDPHRXW 8VH
caution when dumping to avoid large fuel imbalances.
ENG/PROP
‡ Auxiliary hydraulic pressure low indication erroneous
and AUX HYD PUMP PRESS LO (C) ACAWS false due
WR SUHVVXUH VHQVRU IDLOXUH &RQ¿UP SUHVVXUH ZLWK FDUJR FUEL
area direct reading pressure gauge.

‡ Booster hydraulic system aileron/elevator/rudder control
boost shutoff valves failed open. AAR
‡ AILERON/RUDDER/ELEVATOR TRIM indicators failed.
SPEC ‡ NOT FOR FLIGHT ELEC
Autopilot failed.
‡ RWR inoperative.

‡ HF 1 failed. HYD
‡ &DUJR GRPH ÀRRU OLJKWV UHYHUW WR 19,6 PRGH
E. Fault Log................................................................ Review FLT CTRL

AIL/ELEV/RUD SOV-BOOSTER
AIL/ELEV/RUD TAB POSN XMTR, GEAR
AUX HYD PRESS SENS, CGO DOME/FLOOR LTS
CVR, FUEL DRAIN PWR, FUEL LEVEL CNTL VLVS DOR/RMP
FUEL MGMT CNTL B, HF 1 DC, IFF 2, IRCM CNTL
PERF R AUX XFER PUMP, R EXT TK FWD PMP, RWS

SPR/XSHIP VLVS, STICK PUSHER JETTISON
TK 1 BOOST PUMP, TK 1/2/3/4 XFEED VLVS
TK 3 XFER PUMP, POD/HOSE ILLUM LTS LANDING
FORM SIG RLY
(End of Procedure)
DITCHING
Lost Bus Comm failure: If communications have failed, most ECBs stay
in their last state.
BAILOUT
F. Potential Mission Impacts...................................................... Review
