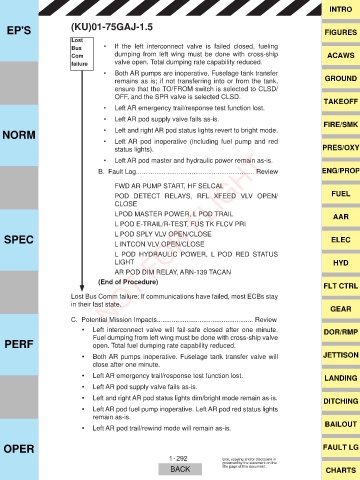

                         Bus       ‡   If the left interconnect valve is failed closed, fueling
                         Com           dumping from left wing must be done with cross-ship                   ACAWS
                         failure       valve open. Total dumping rate capability reduced.
                                   ‡   Both AR pumps are inoperative. Fuselage tank transfer
                                       remains as is; if not transferring into or from the tank,            GROUND
                                       ensure that the TO/FROM switch is selected to CLSD/
                                       OFF, and the SPR valve is selected CLSD.
                                                                                                            TAKEOFF
                                   ‡   Left AR emergency trail/response test function lost.
                                   ‡   Left AR pod supply valve fails as-is.
                                                                                                            FIRE/SMK
  NORM                             ‡   Left and right AR pod status lights revert to bright mode.
                                   ‡   Left AR pod inoperative (including fuel pump and red
                                       status lights).                                                      PRES/OXY
                                   ‡   Left AR pod master and hydraulic power remain as-is.

                                  B.  Fault Log................................................................ Review  ENG/PROP

                                       FWD AR PUMP START, HF SELCAL
                                       POD DETECT RELAYS, RFL XFEED VLV OPEN/                                  FUEL
                                       CLOSE
                                       LPOD MASTER POWER, L POD TRAIL                                          AAR
                                       L POD E-TRAIL/R-TEST, FUS TK FLCV PRI

                                       L POD SPLY VLV OPEN/CLOSE
  SPEC                              NOT FOR FLIGHT                                                             ELEC
                                       L INTCON VLV OPEN/CLOSE
                                       L POD HYDRAULIC POWER, L POD RED STATUS
                                       LIGHT                                                                   HYD
                                       AR POD DIM RELAY, ARN-139 TACAN
                                  (End of Procedure)
                                                                                                            FLT CTRL
                         Lost Bus Comm failure: If communications have failed, most ECBs stay
                         in their last state.
                                                                                                              GEAR
                         C.  Potential Mission Impacts.................................................... Review
                               ‡  Left interconnect valve will fail-safe closed after one minute.           DOR/RMP
  PERF                          Fuel dumping from left wing must be done with cross-ship valve
                                open. Total fuel dumping rate capability reduced.

                               ‡  Both AR pumps inoperative. Fuselage tank transfer valve will              JETTISON
                                close after one minute.

                               ‡  Left AR emergency trail/response test function lost.                      LANDING
                               ‡  Left AR pod supply valve fails as-is.
                               ‡  Left and right AR pod status lights dim/bright mode remain as-is.         DITCHING

                               ‡  Left AR pod fuel pump inoperative. Left AR pod red status lights
                                remain as-is.
                                                                                                            BAILOUT
                               ‡  Left AR pod trail/rewind mode will remain as-is.
