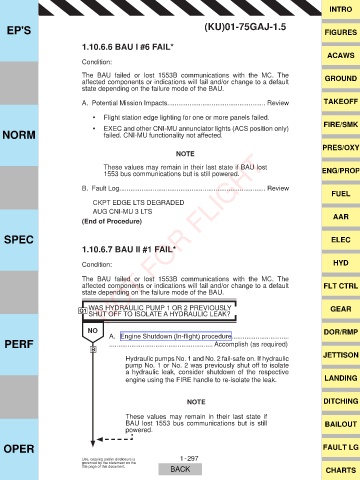

Page 337 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

1.10.6.6 BAU I #6 FAIL*
ACAWS
Condition:

The BAU failed or lost 1553B communications with the MC. The GROUND
affected components or indications will fail and/or change to a default
state depending on the failure mode of the BAU.
A. Potential Mission Impacts..................................................... Review TAKEOFF

‡ Flight station edge lighting for one or more panels failed.
FIRE/SMK
‡
EXEC and other CNI-MU annunciator lights (ACS position only)
NORM failed. CNI-MU functionality not affected.
PRES/OXY
NOTE

These values may remain in their last state if BAU lost ENG/PROP
1553 bus communications but is still powered.

B. Fault Log............................................................................... Review
FUEL
CKPT EDGE LTS DEGRADED
AUG CNI-MU 3 LTS AAR
(End of Procedure)

SPEC NOT FOR FLIGHT ELEC
1.10.6.7 BAU II #1 FAIL*

Condition: HYD

The BAU failed or lost 1553B communications with the MC. The
affected components or indications will fail and/or change to a default FLT CTRL
state depending on the failure mode of the BAU.

WAS HYDRAULIC PUMP 1 OR 2 PREVIOUSLY GEAR
Q1
SHUT OFF TO ISOLATE A HYDRAULIC LEAK?
NO $ (QJLQH 6KXWGRZQ ,Q ÀLJKW SURFHGXUH DOR/RMP
PERF ........................................................ Accomplish (as required)

B JETTISON
Hydraulic pumps No. 1 and No. 2 fail-safe on. If hydraulic
pump No. 1 or No. 2 was previously shut off to isolate
a hydraulic leak, consider shutdown of the respective
engine using the FIRE handle to re-isolate the leak. LANDING

NOTE DITCHING

These values may remain in their last state if
BAU lost 1553 bus communications but is still BAILOUT
powered.
