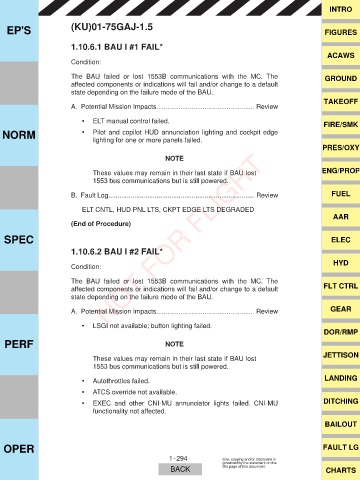

Page 334 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

1.10.6.1 BAU I #1 FAIL*
ACAWS
Condition:

The BAU failed or lost 1553B communications with the MC. The GROUND
affected components or indications will fail and/or change to a default
state depending on the failure mode of the BAU.
TAKEOFF
A. Potential Mission Impacts..................................................... Review

‡ ELT manual control failed. FIRE/SMK
NORM ‡ Pilot and copilot HUD annunciation lighting and cockpit edge
lighting for one or more panels failed.
PRES/OXY

NOTE

These values may remain in their last state if BAU lost ENG/PROP
1553 bus communications but is still powered.

B. Fault Log............................................................................... Review FUEL
ELT CNTL, HUD PNL LTS, CKPT EDGE LTS DEGRADED
AAR
(End of Procedure)

SPEC NOT FOR FLIGHT ELEC

1.10.6.2 BAU I #2 FAIL*
HYD
Condition:

The BAU failed or lost 1553B communications with the MC. The FLT CTRL
affected components or indications will fail and/or change to a default
state depending on the failure mode of the BAU.

A. Potential Mission Impacts..................................................... Review GEAR

‡ LSGI not available; button lighting failed.
DOR/RMP

PERF NOTE
JETTISON
These values may remain in their last state if BAU lost
1553 bus communications but is still powered.
LANDING
‡ Autothrottles failed.
‡ ATCS override not available.
‡ EXEC and other CNI-MU annunciator lights failed. CNI-MU DITCHING
functionality not affected.
BAILOUT

OPER FAULT LG
