INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

NOTE
ACAWS
These values may remain in their last state if BAU lost
1553 bus communications but is still powered.
GROUND
‡ Flight station edge lighting for one or more panels failed.

NOTE TAKEOFF

These values may remain in their last state if BAU lost
1553 bus communications but is still powered. FIRE/SMK
NORM B. Fault Log............................................................................... Review

PRES/OXY
LSGI, CKPT EDGE LTS DEGRADED
AUTOTHROTTLE, ATCS OVERRIDE
P/CP/CTR CSL CNI-MU LTS, ARN-139 TACAN EDGE LTS ENG/PROP
EMERG FUNCT PANEL EDGE LTS
FUEL
(End of Procedure)

AAR

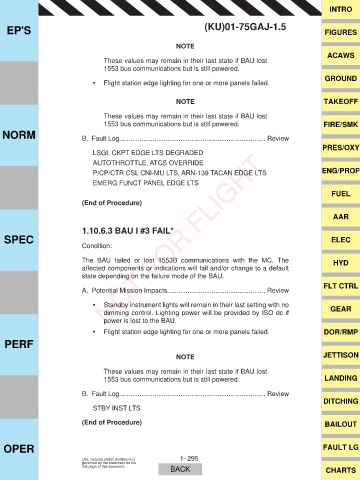

1.10.6.3 BAU I #3 FAIL*
SPEC NOT FOR FLIGHT ELEC
Condition:

The BAU failed or lost 1553B communications with the MC. The HYD
affected components or indications will fail and/or change to a default
state depending on the failure mode of the BAU.
FLT CTRL
A. Potential Mission Impacts..................................................... Review

‡ Standby instrument lights will remain in their last setting with no GEAR
dimming control. Lighting power will be provided by ISO dc if
power is lost to the BAU.

‡ Flight station edge lighting for one or more panels failed. DOR/RMP
PERF

NOTE JETTISON

These values may remain in their last state if BAU lost
1553 bus communications but is still powered. LANDING
B. Fault Log............................................................................... Review
DITCHING
STBY INST LTS

(End of Procedure) BAILOUT

OPER FAULT LG

Use, copying and/or disclosure is 1 -295
