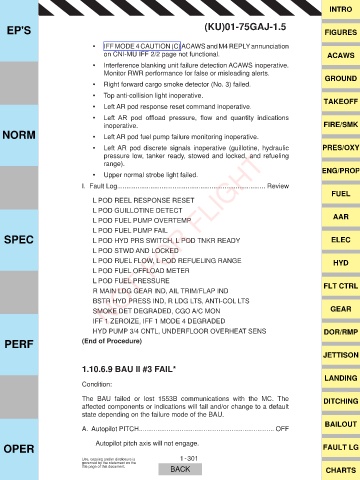

EP'S (KU)01-75GAJ-1.5 FIGURES

‡ IFF MODE 4 CAUTION (C) ACAWS and M4 REPLY annunciation
on CNI-MU IFF 2/2 page not functional. ACAWS

‡ Interference blanking unit failure detection ACAWS inoperative.
Monitor RWR performance for false or misleading alerts.
GROUND
‡ Right forward cargo smoke detector (No. 3) failed.
‡ Top anti-collision light inoperative.
TAKEOFF
‡ Left AR pod response reset command inoperative.

‡ /HIW $5 SRG RIÀRDG SUHVVXUH ÀRZ DQG TXDQWLW\ LQGLFDWLRQV
inoperative. FIRE/SMK
NORM ‡ Left AR pod fuel pump failure monitoring inoperative.

‡ Left AR pod discrete signals inoperative (guillotine, hydraulic PRES/OXY
NOT FOR FLIGHT
pressure low, tanker ready, stowed and locked, and refueling
range).
ENG/PROP
‡ Upper normal strobe light failed.

I. Fault Log................................................................................ Review
FUEL
L POD REEL RESPONSE RESET

L POD GUILLOTINE DETECT
L POD FUEL PUMP OVERTEMP AAR
L POD FUEL PUMP FAIL
SPEC L POD HYD PRS SWITCH, L POD TNKR READY ELEC

L POD STWD AND LOCKED
L POD RUEL FLOW, L POD REFUELING RANGE HYD
L POD FUEL OFFLOAD METER
L POD FUEL PRESSURE FLT CTRL
R MAIN LDG GEAR IND, AIL TRIM/FLAP IND
BSTR HYD PRESS IND, R LDG LTS, ANTI-COL LTS
SMOKE DET DEGRADED, CGO A/C MON GEAR

IFF 1 ZEROIZE, IFF 1 MODE 4 DEGRADED
HYD PUMP 3/4 CNTL, UNDERFLOOR OVERHEAT SENS DOR/RMP
PERF (End of Procedure)

JETTISON

1.10.6.9 BAU II #3 FAIL*
LANDING
Condition:

The BAU failed or lost 1553B communications with the MC. The DITCHING
affected components or indications will fail and/or change to a default
state depending on the failure mode of the BAU.
BAILOUT
A. Autopilot PITCH......................................................................... OFF

OPER Autopilot pitch axis will not engage. FAULT LG
