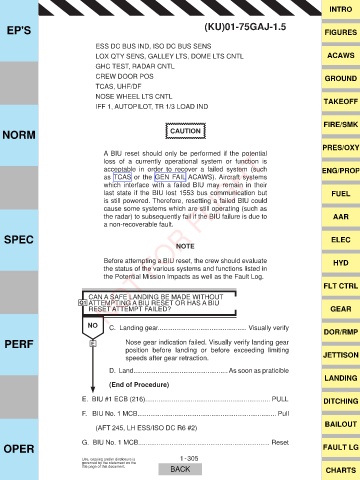

Page 345 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

ESS DC BUS IND, ISO DC BUS SENS
LOX QTY SENS, GALLEY LTS, DOME LTS CNTL ACAWS
GHC TEST, RADAR CNTL
CREW DOOR POS GROUND
TCAS, UHF/DF
NOSE WHEEL LTS CNTL TAKEOFF
IFF 1, AUTOPILOT, TR 1/3 LOAD IND

FIRE/SMK
NORM CAUTION

PRES/OXY
A BIU reset should only be performed if the potential
loss of a currently operational system or function is
acceptable in order to recover a failed system (such ENG/PROP
as TCAS or the GEN FAIL ACAWS). Aircraft systems
which interface with a failed BIU may remain in their
last state if the BIU lost 1553 bus communication but FUEL
is still powered. Therefore, resetting a failed BIU could
cause some systems which are still operating (such as
the radar) to subsequently fail if the BIU failure is due to AAR
a non-recoverable fault.
SPEC NOT FOR FLIGHT ELEC

NOTE

Before attempting a BIU reset, the crew should evaluate HYD
the status of the various systems and functions listed in
the Potential Mission Impacts as well as the Fault Log.
FLT CTRL

CAN A SAFE LANDING BE MADE WITHOUT
Q1 ATTEMPTING A BIU RESET OR HAS A BIU
RESET ATTEMPT FAILED? GEAR

NO C. Landing gear................................................ Visually verify
DOR/RMP
PERF ௘( Nose gear indication failed. Visually verify landing gear
position before landing or before exceeding limiting
speeds after gear retraction. JETTISON

D. Land................................................... As soon as praticible
LANDING
(End of Procedure)

E. BIU #1 ECB (216).................................................................. PULL DITCHING
F. BIU No. 1 MCB........................................................................... Pull
BAILOUT
(AFT 245, LH ESS/ISO DC R6 #2)

OPER G. BIU No. 1 MCB....................................................................... Reset FAULT LG
