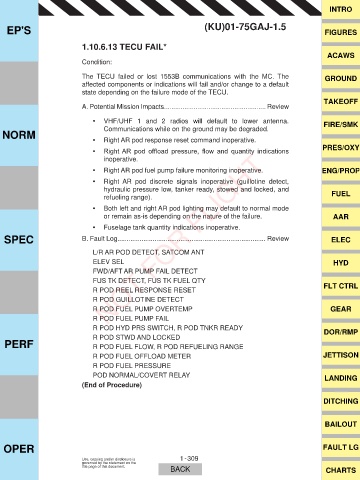

1.10.6.13 TECU FAIL*
ACAWS
Condition:

The TECU failed or lost 1553B communications with the MC. The GROUND
affected components or indications will fail and/or change to a default
state depending on the failure mode of the TECU.
TAKEOFF
A. Potential Mission Impacts....................................................... Review

‡ VHF/UHF 1 and 2 radios will default to lower antenna. FIRE/SMK
NORM Communications while on the ground may be degraded.
‡ Right AR pod response reset command inoperative.
PRES/OXY
‡ 5LJKW $5 SRG RIÀRDG SUHVVXUH ÀRZ DQG TXDQWLW\ LQGLFDWLRQV
NOT FOR FLIGHT
inoperative.
‡ Right AR pod fuel pump failure monitoring inoperative. ENG/PROP

‡ Right AR pod discrete signals inoperative (guillotine detect,
hydraulic pressure low, tanker ready, stowed and locked, and FUEL
refueling range).
‡ Both left and right AR pod lighting may default to normal mode
or remain as-is depending on the nature of the failure. AAR
‡ Fuselage tank quantity indications inoperative.
SPEC B. Fault Log................................................................................ Review ELEC

L/R AR POD DETECT, SATCOM ANT
ELEV SEL HYD
FWD/AFT AR PUMP FAIL DETECT
FUS TK DETECT, FUS TK FUEL QTY FLT CTRL
R POD REEL RESPONSE RESET
R POD GUILLOTINE DETECT
R POD FUEL PUMP OVERTEMP GEAR
R POD FUEL PUMP FAIL
R POD HYD PRS SWITCH, R POD TNKR READY DOR/RMP
PERF R POD STWD AND LOCKED
R POD FUEL FLOW, R POD REFUELING RANGE
R POD FUEL OFFLOAD METER JETTISON
R POD FUEL PRESSURE
POD NORMAL/COVERT RELAY LANDING
(End of Procedure)
