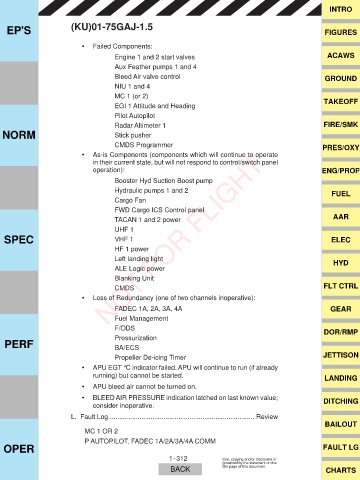

Page 352 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

‡ Failed Components:
Engine 1 and 2 start valves ACAWS
Aux Feather pumps 1 and 4
Bleed Air valve control GROUND
NIU 1 and 4
MC 1 (or 2) TAKEOFF
EGI 1 Attitude and Heading
Pilot Autopilot
Radar Altimeter 1 FIRE/SMK
NORM Stick pusher

CMDS Programmer PRES/OXY
‡ As-is Components (components which will continue to operate
in their current state, but will not respond to control/switch panel
operation): ENG/PROP
Booster Hyd Suction Boost pump
Hydraulic pumps 1 and 2 FUEL
Cargo Fan
FWD Cargo ICS Control panel
TACAN 1 and 2 power AAR
UHF 1
SPEC NOT FOR FLIGHT ELEC
VHF 1
HF 1 power
Left landing light HYD
ALE Logic power
Blanking Unit
CMDS FLT CTRL
‡ Loss of Redundancy (one of two channels inoperative):
FADEC 1A, 2A, 3A, 4A GEAR
Fuel Management
F/ODS DOR/RMP
PERF Pressurization
BA/ECS
Propeller De-icing Timer JETTISON
‡ APU EGT °C indicator failed. APU will continue to run (if already
running) but cannot be started. LANDING
‡ APU bleed air cannot be turned on.
‡ BLEED AIR PRESSURE indication latched on last known value; DITCHING
consider inoperative.
L. Fault Log............................................................................... Review
BAILOUT
MC 1 OR 2
P AUTOPILOT, FADEC 1A/2A/3A/4A COMM
OPER FAULT LG
