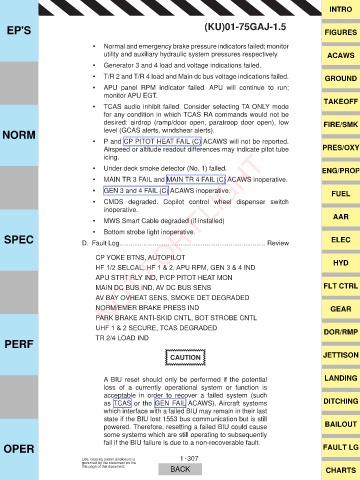

Page 347 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

‡ Normal and emergency brake pressure indicators failed; monitor
utility and auxiliary hydraulic system pressures respectively. ACAWS

‡ Generator 3 and 4 load and voltage indications failed.
‡ T/R 2 and T/R 4 load and Main dc bus voltage indications failed. GROUND
‡ APU panel RPM indicator failed. APU will continue to run;
monitor APU EGT.
TAKEOFF
‡ TCAS audio inhibit failed. Consider selecting TA ONLY mode
for any condition in which TCAS RA commands would not be
desired: airdrop (ramp/door open, paratroop door open), low FIRE/SMK
NORM level (GCAS alerts, windshear alerts).
‡ P and CP PITOT HEAT FAIL (C) ACAWS will not be reported.
Airspeed or altitude readout differences may indicate pitot tube PRES/OXY
NOT FOR FLIGHT
icing.
‡ Under deck smoke detector (No. 1) failed. ENG/PROP
‡ MAIN TR 3 FAIL and MAIN TR 4 FAIL (C) ACAWS inoperative.
‡ GEN 3 and 4 FAIL (C) ACAWS inoperative. FUEL

‡ CMDS degraded. Copilot control wheel dispenser switch
inoperative.
AAR
‡ MWS Smart Cable degraded (if installed)
‡ Bottom strobe light inoperative.
SPEC D. Fault Log............................................................................... Review ELEC

CP YOKE BTNS, AUTOPILOT HYD
+) 6(/&$/ +) $38 530 *(1 ,1'
APU STRT RLY IND, P/CP PITOT HEAT MON

MAIN DC BUS IND, AV DC BUS SENS FLT CTRL
AV BAY OVHEAT SENS, SMOKE DET DEGRADED
NORM/EMER BRAKE PRESS IND GEAR
PARK BRAKE ANTI-SKID CNTL, BOT STROBE CNTL
8+) 6(&85( 7&$6 '(*5$'(' DOR/RMP
PERF TR 2/4 LOAD IND

JETTISON
CAUTION

A BIU reset should only be performed if the potential LANDING
loss of a currently operational system or function is
acceptable in order to recover a failed system (such
as TCAS or the GEN FAIL ACAWS). Aircraft systems DITCHING
which interface with a failed BIU may remain in their last
state if the BIU lost 1553 bus communication but is still
powered. Therefore, resetting a failed BIU could cause BAILOUT
some systems which are still operating to subsequently
OPER fail if the BIU failure is due to a non-recoverable fault. FAULT LG

Use, copying and/or disclosure is 1 -307
governed by the statement on the
title page of this document. BACK CHARTS
