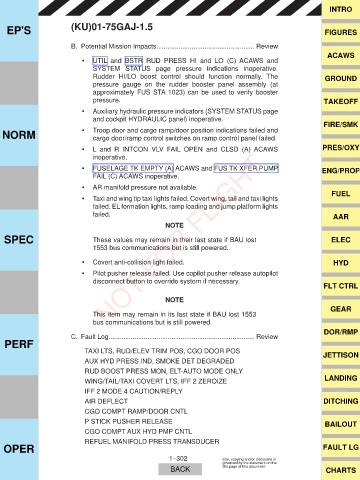

Page 342 - (KU)01-75GAJ-1.5 - Change 1
P. 342

INTRO


   EP'S                  (KU)01-75GAJ-1.5                                                                   FIGURES


                         B.  Potential Mission Impacts..................................................... Review
                                                                                                             ACAWS
                               ‡  UTIL and BSTR RUD PRESS HI and LO (C)  ACAWS and
                                SYSTEM STATUS page pressure indications inoperative.
                                Rudder HI/LO boost control should function normally.  The                   GROUND
                                pressure gauge on the rudder booster panel assembly (at
                                approximately FUS STA 1023) can be used to verify booster
                                pressure.                                                                   TAKEOFF
                               ‡  Auxiliary hydraulic pressure indicators (SYSTEM STATUS page
                                and cockpit HYDRAULIC panel) inoperative.
                                                                                                            FIRE/SMK
  NORM                         ‡  Troop door and cargo ramp/door position indications failed and
                                cargo door/ramp control switches on ramp control panel failed.
                               ‡  L and R INTCON VLV FAIL OPEN and CLSD (A)  ACAWS                          PRES/OXY
                                    NOT FOR FLIGHT
                                inoperative.
                               ‡  FUSELAGE TK EMPTY (A) ACAWS and FUS TK XFER PUMP                         ENG/PROP
                                FAIL (C) ACAWS inoperative.
                               ‡  AR manifold pressure not available.
                                                                                                               FUEL
                               ‡  Taxi and wing tip taxi lights failed. Covert wing, tail and taxi lights
                                failed. EL formation lights, ramp loading and jump platform lights
                                failed.                                                                        AAR

                                                        NOTE
  SPEC                          These values may remain in their last state if BAU lost                        ELEC
                                1553 bus communications but is still powered.

                               ‡  Covert anti-collision light failed.                                          HYD

                               ‡  Pilot pusher release failed. Use copilot pusher release autopilot
                                disconnect button to override system if necessary.
                                                                                                            FLT CTRL

                                                        NOTE
                                                                                                              GEAR
                                This item may remain in its last state if BAU lost 1553
                                bus communications but is still powered.
                                                                                                            DOR/RMP
                         C.  Fault Log............................................................................... Review
  PERF
                             TAXI LTS, RUD/ELEV TRIM POS, CGO DOOR POS                                      JETTISON
                             AUX HYD PRESS IND, SMOKE DET DEGRADED
                             RUD BOOST PRESS MON, ELT-AUTO MODE ONLY
                             WING/TAIL/TAXI COVERT LTS, IFF 2 ZEROIZE                                       LANDING
                             IFF 2 MODE 4 CAUTION/REPLY
                             AIR DEFLECT                                                                    DITCHING
                             CGO COMPT RAMP/DOOR CNTL
                             P STICK PUSHER RELEASE                                                         BAILOUT
                             CGO COMPT AUX HYD PMP CNTL
                             REFUEL MANIFOLD PRESS TRANSDUCER
  OPER                                                                                                      FAULT LG
