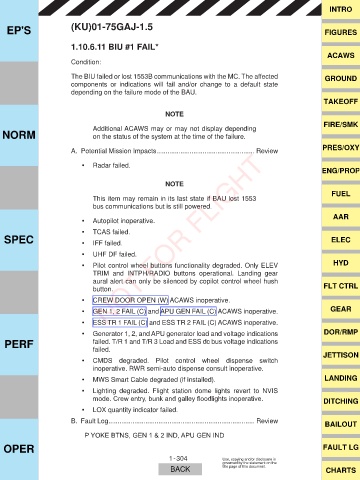

                         1.10.6.11 BIU #1 FAIL*
                                                                                                             ACAWS
                         Condition:

                         The BIU failed or lost 1553B communications with the MC. The affected              GROUND
                         components or indications will fail and/or change to a default state
                         depending on the failure mode of the BAU.
                                                                                                            TAKEOFF

                                                        NOTE
                                                                                                            FIRE/SMK
                                Additional ACAWS may or may not display depending
  NORM                          on the status of the system at the time of the failure.
                                                                                                            PRES/OXY
                                    NOT FOR FLIGHT
                         A.  Potential Mission Impacts..................................................... Review
                               ‡  Radar failed.                                                            ENG/PROP


                                                        NOTE
                                                                                                               FUEL
                                This item may remain in its last state if BAU lost 1553
                                bus communications but is still powered.
                                                                                                               AAR
                               ‡  Autopilot inoperative.
                               ‡  TCAS failed.
  SPEC                         ‡  IFF failed.                                                                  ELEC


                               ‡  UHF DF failed.
                                                                                                               HYD
                               ‡  Pilot control wheel buttons functionality degraded. Only ELEV
                                TRIM and INTPH/RADIO buttons operational. Landing gear
                                aural alert can only be silenced by copilot control wheel hush              FLT CTRL
                                button.
                               ‡  CREW DOOR OPEN (W) ACAWS inoperative.
                               ‡  GEN 1, 2 FAIL (C) and APU GEN FAIL (C) ACAWS inoperative.                   GEAR

                               ‡  ESS TR 1 FAIL (C) and ESS TR 2 FAIL (C) ACAWS inoperative.
                               ‡  Generator 1, 2, and APU generator load and voltage indications            DOR/RMP
  PERF                          failed. T/R 1 and T/R 3 Load and ESS dc bus voltage indications
                                failed.
                                                                                                            JETTISON
                               ‡  CMDS degraded. Pilot control wheel dispense switch
                                inoperative. RWR semi-auto dispense consult inoperative.

                               ‡  MWS Smart Cable degraded (if installed).                                  LANDING
                               ‡  Lighting degraded. Flight station dome lights revert to NVIS
                                PRGH  &UHZ HQWU\  EXQN DQG JDOOH\ ÀRRGOLJKWV LQRSHUDWLYH                    DITCHING
                               ‡  LOX quantity indicator failed.
                         B.  Fault Log............................................................................... Review  BAILOUT

                             3 <2.( %716  *(1       ,1'  $38 *(1 ,1'
