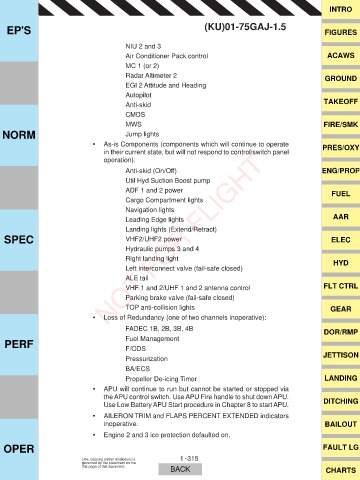

EP'S (KU)01-75GAJ-1.5 FIGURES

NIU 2 and 3
Air Conditioner Pack control ACAWS
MC 1 (or 2)
Radar Altimeter 2 GROUND
EGI 2 Attitude and Heading
Autopilot
Anti-skid TAKEOFF
CMDS
MWS FIRE/SMK
NORM Jump lights

‡ As-is Components (components which will continue to operate PRES/OXY
in their current state, but will not respond to control/switch panel
operation):
Anti-skid (On/Off) ENG/PROP
Util Hyd Suction Boost pump
ADF 1 and 2 power FUEL
Cargo Compartment lights
Navigation lights
Leading Edge lights AAR
Landing lights (Extend/Retract)
SPEC NOT FOR FLIGHT ELEC
VHF2/UHF2 power
Hydraulic pumps 3 and 4
Right landing light HYD

Left interconnect valve (fail-safe closed)
ALE tail
VHF 1 and 2/UHF 1 and 2 antenna control FLT CTRL
Parking brake valve (fail-safe closed)
TOP anti-collision lights GEAR
‡ Loss of Redundancy (one of two channels inoperative):
FADEC 1B, 2B, 3B, 4B DOR/RMP
PERF Fuel Management
F/ODS
Pressurization JETTISON
BA/ECS
Propeller De-icing Timer LANDING

‡ APU will continue to run but cannot be started or stopped via
the APU control switch. Use APU Fire handle to shut down APU. DITCHING
Use Low Battery APU Start procedure in Chapter 8 to start APU.
‡ AILERON TRIM and FLAPS PERCENT EXTENDED indicators
inoperative. BAILOUT
‡ Engine 2 and 3 ice protection defaulted on.
