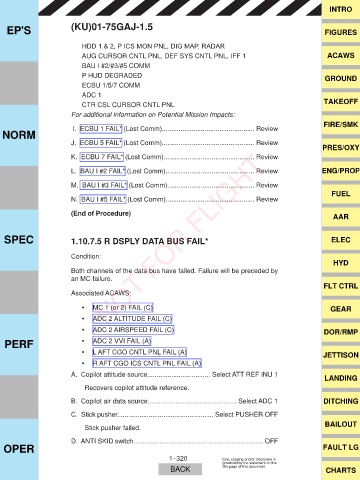

EP'S (KU)01-75GAJ-1.5 FIGURES

+'' 3 ,&6 021 31/ ',* 0$3 5$'$5
AUG CURSOR CNTL PNL, DEF SYS CNTL PNL, IFF 1 ACAWS
BAU I #2/#3/#5 COMM
P HUD DEGRADED GROUND
ECBU 1/5/7 COMM
ADC 1
CTR CSL CURSOR CNTL PNL TAKEOFF
For additional information on Potential Mission Impacts:
FIRE/SMK
I. ECBU 1 FAIL* (Lost Comm).................................................. Review
NORM
J. ECBU 5 FAIL* (Lost Comm).................................................. Review
PRES/OXY
NOT FOR FLIGHT
K. ECBU 7 FAIL* (Lost Comm)................................................. Review
L. BAU I #2 FAIL* (Lost Comm)................................................ Review ENG/PROP

M. BAU I #3 FAIL* (Lost Comm)............................................... Review
FUEL
N. BAU I #5 FAIL* (Lost Comm)................................................ Review

(End of Procedure) AAR

SPEC 1.10.7.5 R DSPLY DATA BUS FAIL* ELEC

Condition:
HYD
Both channels of the data bus have failed. Failure will be preceded by
an MC failure.
FLT CTRL
Associated ACAWS:

‡ MC 1 (or 2) FAIL (C) GEAR
‡ ADC 2 ALTITUDE FAIL (C)
‡ ADC 2 AIRSPEED FAIL (C) DOR/RMP
PERF ‡ ADC 2 VVI FAIL (A)

‡ L AFT CGO CNTL PNL FAIL (A) JETTISON
‡ R AFT CGO ICS CNTL PNL FAIL (A)
A. Copilot attitude source.................................. Select ATT REF INU 1 LANDING

Recovers copilot attitude reference.

B. Copilot air data source................................................ Select ADC 1 DITCHING

C. Stick pusher.................................................... Select PUSHER OFF
BAILOUT
Stick pusher failed.
D. ANTI SKID switch...................................................................... OFF
OPER FAULT LG
