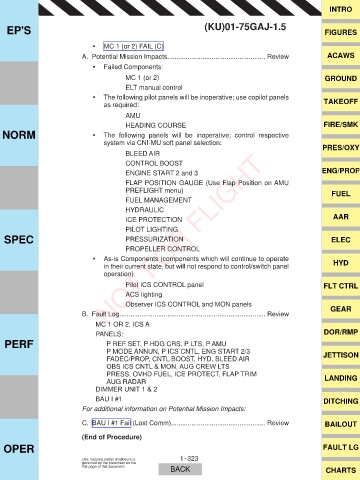

Page 363 - (KU)01-75GAJ-1.5 - Change 1

INTRO

EP'S (KU)01-75GAJ-1.5 FIGURES

‡ MC 1 (or 2) FAIL (C)
A. Potential Mission Impacts..................................................... Review ACAWS
‡ Failed Components:
MC 1 (or 2) GROUND
ELT manual control
‡ The following pilot panels will be inoperative; use copilot panels TAKEOFF
as required:
AMU
HEADING COURSE FIRE/SMK
NORM ‡ The following panels will be inoperative; control respective

system via CNI-MU soft panel selection:
PRES/OXY
BLEED AIR
CONTROL BOOST
ENGINE START 2 and 3 ENG/PROP
FLAP POSITION GAUGE (Use Flap Position on AMU
PREFLIGHT menu) FUEL
FUEL MANAGEMENT
HYDRAULIC
ICE PROTECTION AAR
PILOT LIGHTING
SPEC NOT FOR FLIGHT ELEC
PRESSURIZATION
PROPELLER CONTROL
‡ As-is Components (components which will continue to operate HYD
in their current state, but will not respond to control/switch panel
operation):
Pilot ICS CONTROL panel FLT CTRL
ACS lighting
Observer ICS CONTROL and MON panels GEAR
B. Fault Log............................................................................... Review
MC 1 OR 2, ICS A
PANELS: DOR/RMP
PERF P REF SET, P HDG CRS, P LTS, P AMU

P MODE ANNUN, P ICS CNTL, ENG START 2/3 JETTISON
FADEC/PROP, CNTL BOOST, HYD, BLEED AIR
2%6 ,&6 &17/ 021 $8* &5(: /76
PRESS, OVHD FUEL, ICE PROTECT, FLAP TRIM LANDING
AUG RADAR
',00(5 81,7
BAU I #1 DITCHING
For additional information on Potential Mission Impacts:
C. BAU I #1 Fail (Lost Comm)................................................... Review BAILOUT

(End of Procedure)
