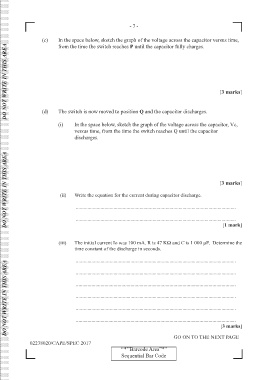

P. 711

- 7 -

(c) In the space below, sketch the graph of the voltage across the capacitor versus time,
DO NOT WRITE IN THIS AREA
from the time the switch reaches P until the capacitor fully charges.

[3 marks]

(d) The switch is now moved to position Q and the capacitor discharges.

(i) In the space below, sketch the graph of the voltage across the capacitor, Vc,
DO NOT WRITE IN THIS AREA
versus time, from the time the switch reaches Q until the capacitor
discharges.

[3 marks]

(ii) Write the equation for the current during capacitor discharge.

...........................................................................................................................

...........................................................................................................................
[1 mark]

DO NOT WRITE IN THIS AREA
(iii) The initial current Io was 100 mA. R is 47 KΩ and C is 1 000 µF. Determine the
time constant of the discharge in seconds.

...........................................................................................................................

...........................................................................................................................
[3 marks]

GO ON TO THE NEXT PAGE
02238020/CAPE/SPEC 2017
