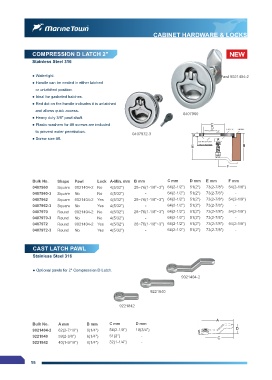

Page 5 - 2017 Catalog

CABINET HARDWARE & LOCKS

COMPRESSION D LATCH 2" NEW

Stainless Steel 316

● Watertight. Pawl 9021404-2
● Handle can be nested in either latched
or unlatched position.
● Ideal for gasketed hatches.
● Red dot on the handle indicates it is unlatched
and allows quick access.
0407960
● Heavy duty 3/8" pawl shaft.
● Plastic washers for #8 screws are included
to prevent water penetration.
0407972-3
● Screw size #8.

Bulk No. Shape Pawl Lock A-Min. mm B mm C mm D mm E mm F mm
0407960 Square 9021404-2 No 4(5/32") 28~76(1-1/8"~3") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8")
0407960-3 Square No No 4(5/32") - 64(2-1/2") 51(2") 73(2-7/8") -
0407962 Square 9021404-2 Yes 4(5/32") 28~76(1-1/8"~3") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8")
0407962-3 Square No Yes 4(5/32") - 64(2-1/2") 51(2") 73(2-7/8") -
0407970 Round 9021404-2 No 4(5/32") 28~76(1-1/8"~3") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8")
0407970-3 Round No No 4(5/32") - 64(2-1/2") 51(2") 73(2-7/8") -
0407972 Round 9021404-2 Yes 4(5/32") 28~76(1-1/8"~3") 64(2-1/2") 51(2") 73(2-7/8") 54(2-1/8")
0407972-3 Round No Yes 4(5/32") - 64(2-1/2") 51(2") 73(2-7/8") -

CAST LATCH PAWL
Stainless Steel 316

● Optional pawls for 2" Compression D Latch.
9021404-2

9221840

9221842

A
Bulk No. A mm B mm C mm D mm
9021404-2 62(2-7/16") 6(1/4") 54(2-1/8") 18(3/4") B D
9221840 59(2-3/8") 6(1/4") 51(2") - C
9221842 40(1-9/16") 6(1/4") 32(1-1/4") -

15
