406 Ø
343 sq.
323 sq.
FIRE STOP PRODUCT 25mm DEPTH
MINIMUM 3Hr FIRE RATING

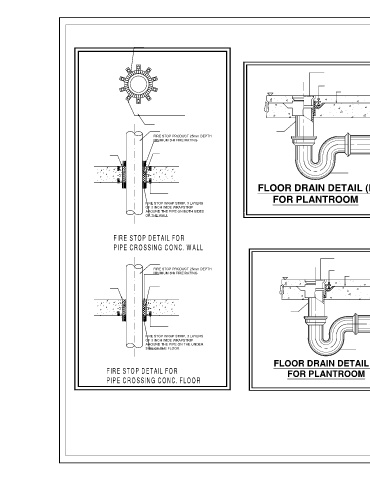

FLOOR DRAIN DETAIL (FD)
FOR PLANTROOM
FIRE STOP WRAP STRIP, 3 LAYERS
OF 3 INCH WIDE WRAPSTRIP ROOF RAINWATER OUTLET
AROUND THE PIPE ON BOTH SIDES
OF THE WALL
FIRE STOP DETAIL FOR
PIPE CROSSING CONC. WALL
FIRE STOP PRODUCT 25mm DEPTH
MINIMUM 3Hr FIRE RATING

FIRE STOP WRAP STRIP, 3 LAYERS
OF 3 INCH WIDE WRAPSTRIP
AROUND THE PIPE ON THE UNDER
SIDE OF THE FLOOR
FLOOR DRAIN DETAIL (FD)
FIRE STOP DETAIL FOR FOR PLANTROOM
PIPE CROSSING CONC. FLOOR RAINWATER OUTLET
A 3

P L 0 1 3
