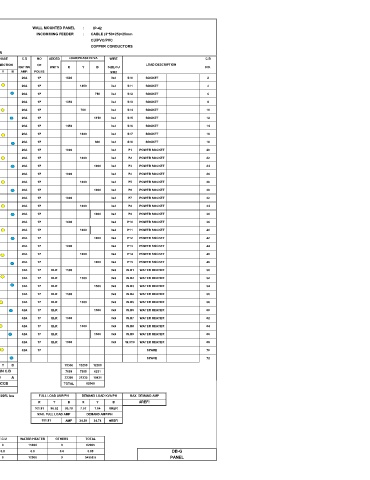

PROJECT NAME : يبرحلا ريبوج ةزيزع لايف WALL MOUNTED PANEL : IP-42
DISTRIBUTION BOARD NAME : DB-GROUND FLOOR INCOMMING FEEDER : CABLE (3*50+25)+25mm
MAIN INCOMING CIRCUIT BREAKER : 3PH MCCB C.B 125 AMP. CU/PVC/PVC
SHORT CIRCUIT BREAKING CAPACITY 0 COPPER CONDUCTORS
GROUD FLOOR
C.B WIRE LOAD/PHASE IN VA ADDED NO C.B PHASE C.B NO ADDED LOAD/PHASE IN VA WIRE C.B
OF CONNECTION OF LOAD DESCRIPTION
NO. SIZE,CU R Y B UNITS RATING RATING UNITS R Y B SIZE,CU NO.
MM2 POLES AMP. R Y B AMP. POLES MM2
1 LIGHTING L1 3x3 375 1P 16A 20A 1P 1500 3x4 S10 SOCKET 2
3 LIGHTING L2 3x3 375 1P 16A 20A 1P 1450 3x4 S11 SOCKET 4
5 LIGHTING L3 3x3 325 1P 16A 20A 1P 750 3x4 S12 SOCKET 6
7 LIGHTING L4 3x3 574 1P 16A 20A 1P 1350 3x4 S13 SOCKET 8
9 LIGHTING L5 3x3 677 1P 16A 20A 1P 700 3x4 S14 SOCKET 10
11 LIGHTING L6 3x3 653 1P 16A 20A 1P 1150 3x4 S15 SOCKET 12
13 LIGHTING L7 3x3 375 1P 16A 20A 1P 1450 3x4 S16 SOCKET 14
15 LIGHTING L8 3x3 325 1P 16A 20A 1P 1600 3x4 S17 SOCKET 16
17 LIGHTING L9 3x3 744 1P 16A 20A 1P 800 3x4 S18 SOCKET 18
19 LIGHTING L10 3x3 158 1P 16A 20A 1P 1000 3x4 P1 POWER SOCKET 20
21 LIGHTING L11 3x3 375 1P 16A 20A 1P 1000 3x4 P2 POWER SOCKET 22
23 LIGHTING L12 3x3 375 1P 16A 20A 1P 1000 3x4 P3 POWER SOCKET 24
25 LIGHTING L13 3x3 624 1P 16A 20A 1P 1000 3x4 P4 POWER SOCKET 26
27 LIGHTING L14 3x3 990 1P 16A 20A 1P 1000 3x4 P5 POWER SOCKET 28
29 LIGHTING L15 3x3 450 1P 16A 20A 1P 1000 3x4 P6 POWER SOCKET 30
31 LIGHTING L16 3x3 375 1P 16A 20A 1P 1000 3x4 P7 POWER SOCKET 32
33 LIGHTING L17 3x3 508 1P 16A 20A 1P 1000 3x4 P8 POWER SOCKET 34
35 LIGHTING L18 3x3 378 1P 16A 20A 1P 1000 3x4 P9 POWER SOCKET 36
37 LIGHTING L19 3x3 328 1P 16A 20A 1P 1000 3x4 P10 POWER SOCKET 38
39 LIGHTING L20 3x3 495 1P 16A 20A 1P 1000 3x4 P11 POWER SOCKET 40
41 LIGHTING L21 3x3 528 1P 16A 20A 1P 1000 3x4 P12 POWER SOCKET 42
43 LIGHTING L22 3x3 690 1P 16A 20A 1P 1000 3x4 P13 POWER SOCKET 44
45 LIGHTING L23 3x3 840 1P 16A 20A 1P 1000 3x4 P14 POWER SOCKET 46
47 LIGHTING L24 3x3 278 1P 16A 20A 1P 1000 3x4 P15 POWER SOCKET 48
49 LIGHTING SS-1 3x3 400 1P 16A 32A 1P ELR 1500 3x6 W.H1 WATER HEATER 50
51 SOCKET S1 3x4 1050 1P 20A 32A 1P ELR 1500 3x6 W.H2 WATER HEATER 52
53 SOCKET S2 3x4 750 1P 20A 32A 1P ELR 1500 3x6 W.H3 WATER HEATER 54
55 SOCKET S3 3x4 650 1P 20A 32A 1P ELR 1500 3x6 W.H4 WATER HEATER 56
57 SOCKET S4 3x4 800 1P 20A 32A 1P ELR 1500 3x6 W.H5 WATER HEATER 58
59 SOCKET S5 3x4 800 1P 20A 32A 1P ELR 1500 3x6 W.H6 WATER HEATER 60
61 SOCKET S6 3x4 1000 1P 20A 32A 1P ELR 1500 3x6 W.H7 WATER HEATER 62
63 SOCKET S7 3x4 1550 1P 20A 32A 1P ELR 1500 3x6 W.H8 WATER HEATER 64
65 SOCKET S8 3x4 950 1P 20A 32A 1P ELR 1500 3x6 W.H9 WATER HEATER 66
67 SOCKET S9 3x4 1550 1P 20A 32A 1P ELR 1500 3x6 W.H10 WATER HEATER 68
69 SPARE __ 1P 16A 32A 1P SPARE 70
71 SPACE SPACE 72
7099 7985 6231 R Y B 15300 13250 12200
MAIN C.B 7099 7985 6231
125 A 22399 21235 18431
MCCB TOTAL 62065
NOTES :-
CT : CONTACTOR WITH TIMER & P.B Ics=100% Icu FULL LOAD AMP/PH DEMAND LOAD KVA/PH MAX. DEMAND AMP
CTT : CONTACTOR WITH TIMER & PHOTO CELL R Y B R Y B #REF!
ELR : EARTH LEAKAGE 30 mA 101.81 96.52 83.78 7.57 7.64 #REF!
MAX. FULL LOAD AMP DEMAND AMP/PH
101.81 AMP 34.39 34.74 #REF!
CONNECTED LOAD LIGHTING SOCKET P/SOCKET AIR CONDITION F.C.U WATER HEATER OTHERS TOTAL
LOAD IN VA 12215 19850 15000 0 0 15000 0 62065
DEMAND FACTOR 0.9 0.9 0.9 0.85 0.8 0.8 0.6 0.88 DB-G
ACTUAL LOAD 10993.5 17865 13500 0 0 12000 0 54358.5 PANEL
